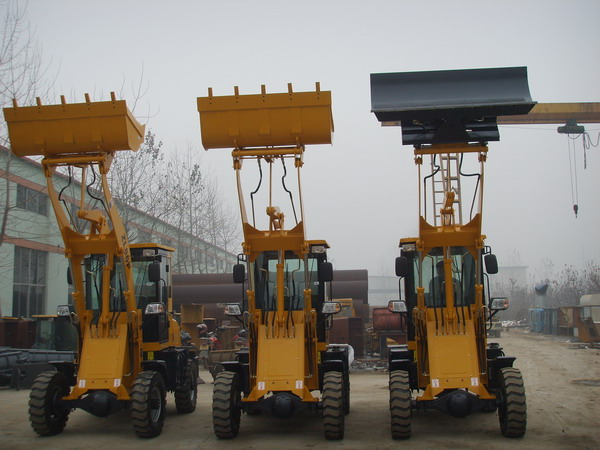

Mini Wheel Loader ZL08F - ZL08F Specificaton & Trade Terms
| Model | ZL08F |
|---|
| Place Of Origin | China |
|---|
| Packaging | nude |
|---|
| Brand | Dragon Loader |
|---|
| Gurantee | 1 year |
|---|
| Certifications | CE |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 200 sets per month |
|---|
| Minimum Order | 1 set |
|---|
| Loading Ports | Qingdao |
|---|
| Delivery Time | 30 days |
|---|
ZL08F
Rated load: 800kg
Total weight:2400kg
Dim.: 4800*1640*2550 mm
Engine: 20kw Diesel Engine
Mechanical Transmission
1 .Rated Load 800 kg
2. Total Weight 2400 kg
3. Rated Bucket Capacity 0.3 CBM
4. Max. Tractive Force 28 KN
5. Max. Breakout Force ≥ 21 KN
6. Max. Gradeability 38°
7. Max. Dumping Height 2680 mm
8. Max. Dumping Reach 900 mm
9. Raising Time ≤ 4.0 s
10. Total Cycle Time ≤ 9.0 s
11. Overall Dimensions (L x W x H) 4800*1640*2550 mm
12. Min. Turning Radius 3000 mm
13. Engine Model CHANGCHAI L28
14. Engine Type Single-cylinder, Horizontal, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Engine Rated Power 20 kW
16. Engine Rated Speed 2200 rpm
17. Engine Min. Fuel Consumption Ratio ≤ 244.8 g/kW•h
18. Transmission Mode Mechanical Shift
19. Gear Shift 2 Forward, 1 Reverse, High & Low Speed
20. Max. Speed 25 km/h
21. Model of Drive Axle 50 Drive Axle
22. Wheel Tread 1330 mm
23. Wheel Base 2130 mm
24. Drive Mode 4-wheel Drive
25. Hydraulic System Working Pressure 16 Pa
26. Fuel Tank Capacity 50 L
27. Service Brake Foot Pedal Drum Brake
28. Tire Type Specification 8.25-16-14PR
29. Front Tire Pressure 0.40 Mpa
30. Rear Tire Pressure 0.35 Mpa
