Motor card dispenser
Listing ID#10169744
ModelCRT-531
CategoryVending Machines
Vending Machines

Motor card dispenser

Specifications

Origin
CRT
Request Quote
Quick answer

Motor card dispenser is a Vending Machines product. Key specs — Origin: CRT.

Product Description

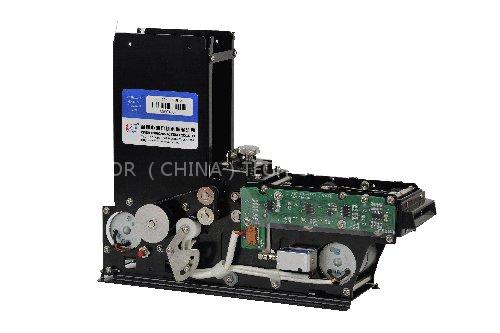

Product Description CRT-531 series are card dispensing module equiments with RS232 or TTL interface to dispense ISO can be captured when the user doesn't take the card or there is any error during operation. Product Feature Features: Prevents 2 cards dispensing Accept cards from the exit Pre-dispense function accelerate dispensing speed Effective card capture & card pre-detection Esay card loading & maintenance Product Specification/Models

Specification:

Weight: 2.5kg Stacker capability 185pcsX0.76mm Extending stacker:Short:60pcs,long:170pcs Error card bin capability 38pcs(0.76 mm Standard card) Card pre-empty detection 10~70pcs in case of 0.76mm card(ex-work setting:15pcs) Card dispensing time 2 sec Card standard

Size:54 X 86 mm

Thickness:0.2~2.0mm Communication interface: RS-232&TTL(Ex-work setting:RS-232) Current consumption Static current:0.1A Peak current:1.5A

Power supply: DC24V(10%) Environmental requirement Operation:0~50oC/0~90%RH(Without condensing) Storage:-10~75oC/0~90%RH(Without condensing) Application

Application: Card parking system Auto card vending machine Ticket vending machine High-way card dispensing system
