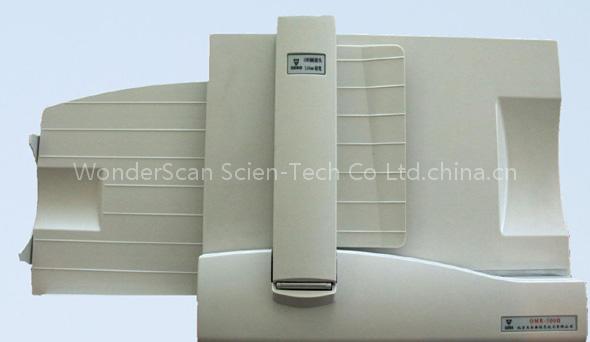

OMR 500B scanner is a Printers & Scanners product. Key specs — Origin: China.
Product Description
Dimensions
Physical420mm(L)
310mm(W)
150mm(H)
Weight6Kg
Minimum form size85mm*40mm
Maximum form size330mm*225mm
Minimum form weight70gsm
Maximum form weight160gsm
Environmental
Minimum temperature10 deg C
Maximum temperature30 deg C
Minimum humidity20%
Maximum humidity80%
(non-condensing)
Power
Consumption<50 Watts
Supply220V 50Hz AC
Readhead
Ink or pencil red readhead
Speed
Reading (theoretical)800 forms/hour (185*260mm)
2000 form/hour (130*185mm)
(practical)500 form/hour (185*260mm)
1500 form/hour (130*185mm)
Interface (auto sensing)
CommunicationRS232
Minimum baud rate57600 baud
Document Format
Track spacing0.2 inch or 0.196 inch
Minimum row spacing0.118 inch
Data tracks40
Maximum rows/sheet128
Software
OMR driver
Form format editing program
General data entry program
Services
Services system
There are lots of experienced software and hardware senior network engineers inour company who can provide the total solution based on Windows NT, Netware, Internet, Intranet network and information form design.
Maintenance
Fee-free maintains for one year. All system software free update.
