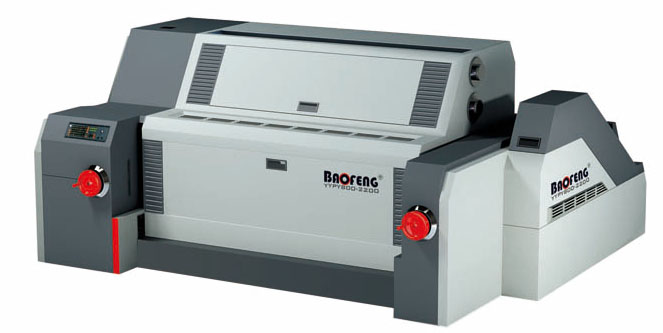

Oilseed Flaking Mill

The YYPY2 series Oilseed flaking mill daily output is big, the work is steady, hydraulic system pressure stable reliable, between the roller is also equipped with against collision to install, reduces between roller's collision, enhanced roller's service life. Is the depth the general customer welcome oilseed equipment.

Cooperative Product Advantages

Single rotation Motor power: 1600KW-6, adopt the United States Gates synchronous belt drive

Feed motor: Adopt SEW frequency conversion motor, can adjust the feed rate according to needed

Roll Adopt the hollow roll-axes and the high-precision dynamic balancing technology, eliminate the vibration caused by the centrifugalforce when doing high-speed operation, through the perimeter drill cooling technology to maintain a balanced operation temperature patent number:ZL 2009 2 0010356.8

Bearing All adopt SKF bearings equipment be imported with original packaging, can increase the service lifecycle several times Electronic display of flake thickness: To maintain the stability of production, eliminate the dangers arise from manual operation

Strong magnetic separation

Adopt multi-level magnetic separation device, eliminate the damage of roll on the impurities in the raw materials

Model: Unique design, occupies small area, easy to operate, nice to look, patent number:ZL 2007 1 0202499.4

Scraper: By changing the length of the spring to change the contact between Scraper and the roll surface, easy to installation

Bearing block: Adopt the square bearing block, install wear plate in the underside of the bearing seat, slide along the track free,easy to change and adjust

Dust-proof: The device comes with dust-proof devices to remove dust drastically when working

Achievement: The products are exported to Australia, Cargill Grain and Oil (Yangjiang) and other enterprises
