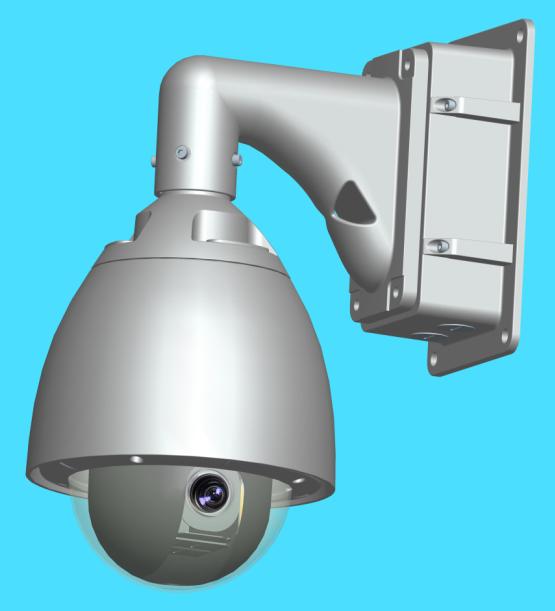

Outdoor High Speed Dome Camera - SMC-550

Features

* 18X, 22X, 23X, 26X, 27X, 30X, 35X, 36X various integrated camera modules optional
* 128 preset positions, the preset accuracy up to 0.1 degrees
* 360 degree continuous pan rotation, pan speed up to 300 degree/s
* 4 auto cruise lines, 3 pattern tracks
* 7 alarm input and 2 alarm output
* OSD menu, home place function, 180 degree auto flip function
* Left and right limit scan function, 0.1 degree-100 degree/s scanning speed (set at random)
* Preset cruise speed and dwell time
* Customized short cut keys, Image effect saves and short cut key calling
* Auto focus, manual first, angle indication
* Multifold start mold, dynamic tracking privacy zones
* Multifold default operation mold, leisure time settable
* Quick install, IP66 aluminum alloy housing, CE/FCC,ROSH certified

Specifications

Image Sensor: 1/4'' SONY Super HAD CCD
Effective Pixel: PAL: 752H*582V, NTSC: 768H*494V
Horizontal Resolution: 480 TVL
S/N Ratio: > 52db (AGC OFF)
Built-in Lens: 22X optical (F=3.9~85.8mm)
Min. Illumination: COLOR/ BW AUTO 0Lux (IR ON)
Electronic Shutter: AUTO/ 1/50(1/60)s ~ 1/100,000s
White Balance: AUTO/ MANUAL/ INDOOR/ OUTDOOR
Backlight Compensation: ON/ OFF/ HIGH/ MIDDLE/ LOW
OSD Menu: English OSD menu
IR Distance: > 40m
Focus: AUTO/ MANUAL (priority)
Communication Protocal: PELCOD/ PELCOP
Baud Rate: 2400/4800/9600BPS
Operating Temperature: -10 degrees celsius~ +50 degrees celcius
Power: AC24V/40W
Dimension: 215mm*397mm
