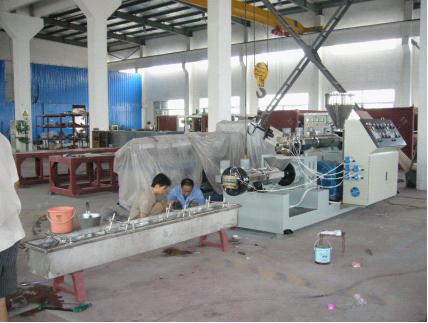

PE Granulating Line - PE Specificaton & Trade Terms
| Model | PE |
|---|
| Place Of Origin | China |
|---|
| Packaging | wooden packing |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T,L/C |
|---|
| Minimum Order | 1set |
|---|
No Machine Model Quantity
1 Single-screw extruder (Main) SJ130 1
2 Single-screw extruder (Auxiliary) SJ110 1
3 Die head and Hydraulic draping system 1.5kw 1
4 Cooling water tank 3m 1
5 Automatic Cutting machine 2.2kw 1
6 Storage bunker 1m 1
7 Electric control cabinet 1
This machine is reasonable in design, easy in operation, convenient in maintenance, high in output and low in consumption, etc。mainly suitable to recycle and granulate for various PE and PP, Complete Unit: main extruder, crush-clean machine, granulator, hopper and water tank, heating collar，Customized career plan is available according to practical situation of customers with technology; after-sale service free of charge, Instruction for Use is attached to free you from worries.
Details:
1.Single-screw extruder (main)
1 Screw diameter 130mm
2 Rotating speed of screw 80 rpm
3 Main motor power 55kw
4 Heating power of barrel 48kw
5 Max.Extrusion capacity 250-300kg/h
6 Centre height 1000mm
7 Weight 2500kg
8 Adjusting method of main motor Frequency converter control
9 Temperature controller Yatai
10 Barrel temperature adjusting mode
Heating: Ceramic heater
11 Material of screw and barrel 38CrMoAlA Azotizing 0.4-0.7mm
Above 700HV
12 Kind of drive Hard tooth face gearbox
2.Single-screw extruder (Auxiliary)
1 Screw diameter 110mm
2 Rotating speed of screw 80 rpm
3 Main motor power 22kw
4 Heating power of barrel 20kw
5 Max.Extrusion capacity 250-300kg/h
6 Centre height 500mm
7 Weight 1200kg
8 Adjusting method of main motor Frequency converter control
9 Temperature controller Yatai
10 Barrel temperature adjusting mode
Heating: Ceramic heater
11 Material of screw and barrel 38CrMoAlA Azotizing 0.4-0.7mm
Above 700HV
12 Kind of drive Hard tooth face gearbox
3.Die head and Hydraulic draping system
1 Motor power 1.5kw
2 Material Die steel
4. Cooling water tank
1 Material 3m
2 Material Stainless steel
5. Automatic Cutting machine
1 Motor power 2.2KW
2 Convenient operation
3 Weight 100Kg
6.Storage bunker
1 Material Stainless steel
2 Weight 70kg
3 Cubage 1m³
7.Electric control cabinet
1 Frequency converter HOLIP (Member of the Danforss Group)
2 Contactor DeLiXi (China)
3 Temperature controller YaTai (Shanghai)
