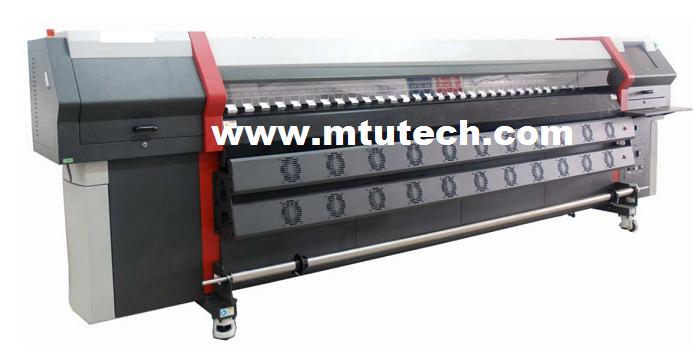

Polaris512 LJ320P Solvent Printer - LJ320P

Characteristics:
Spectra Polaris Printheads
4/6/8 printheads / 4 colors (CMYK) or 6colors(CMYK,LC,LM)
Highest printing speed up to 110sqm/hr
Printing width of 3.20 meters
Highest printing resolution of 800x1200 dpi

General Information
Printing methods: Drop-on-demand piezo electric
Ink reservoirs: Refillable on the fly while printing / 4000ml per color
Ink characteristics: Solvent-based pigments
Printhead controls: Print head temperature and voltage are software adjustable
Media feeding system: Free spin / motor-driven lazy loop for optimal banner tension
Media take-up system: Automatic motor-driven spool capacity
Media handling options: Roll to roll
Drying system: Digitally controlled heater and front-mounted fans
RIP software: Photoprint 6.1 (Windows 2000, Windows Xp Pro Sp2)
Color management: ICC based color, adjustment curves, density adjustment
File formats: Bitmaps, TIFF，JPEG，Postscript 3，EPS，PDF etc.
Electrical requirements: 50Hz/60Hz，220V(±10%)>20A
Environmental requirements: Ambient temperature：20-30℃，Relative humidity：40-70%
Warranty: 1 year (please consult your local dealer for details)
Technical Specification
Model: MT-LJ 320P
Printing heads: Spectra Polaris printheads
No. of Print heads: 4/6/8 heads
Color: 4 colors (CMYK) or 6colors(CMYK,LC,LM)
Resolution options: 300x400,300x600,400x600,600x600,600x800,800x1200
Printing Speed:
Draft Quality:
Standard Quality:
High Quality:
Ultra Quality:
Up to 110sqm/hr
Up to 75sqm/hr
Up to 55sqm/hr
Up to 35sqm/hr
Maximum media width: 330 cm
Maximum printing width: 320 cm
Maximum roll dimensions: Φ 35 cm
Media Types: Paper, advertising banner, PVC, mesh fabrics, adhesive vinyl etc.
Outdoor durability: 2 years
Dimensions: 4.76mL x 1.09mW x 1.40mH
Weight(Net)： 700 kg
