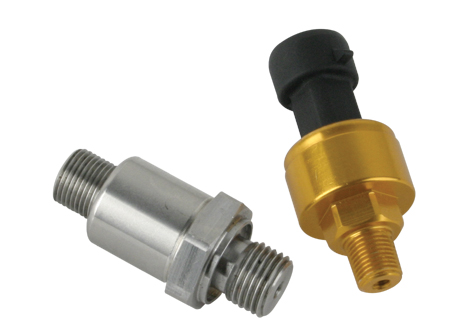

Pressure Transmitter- PT211B - PT211B Specificaton & Trade Terms
| Model | PT211B |
|---|
| Place Of Origin | China |
|---|
| Packaging | Carton |
|---|
| Brand | Hao Ying |
|---|
| Certifications | CE |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 5 pcs per week |
|---|
| Minimum Order | 1 pcs |
|---|
| Loading Ports | Shanghai |
|---|
| Delivery Time | 7-10 working days |
|---|
For Automobile,Compressor, Air Condition Only Series
1, Better performance,
2, reliable stability,
3, repeatability,
4, CE,ISO9001:2000,EX-Proof etc
Pressure Transducer
Features & Applications
Combined Error less than ±0.25%
Stainless-steel sealed
Small volume, OEM available
Excellent stability & repeatability
Specification
1 Pressure Range -100KPa-5KPa-60MPa
2 Accuracy ±0.25%FS
3 Power Supply 5Vdc;12Vdc;24Vdc(9~36V)
4 Output Signal 0.5~4.5V;0~5V;0~10V;0~20mA;4~20mA;
5 Diaphragm Temp. -25~+85 Deg.C
6 Diaphragm Material /
7 Safety Grade IP65
8 Thermocouple /
9 E-connection 5PIN, M12, Hirschmann DIN
10 Process connection 7/16-20UNF;G1/2;G1/4;1/4NPT;M14×1.5M18×1.5;M20×1.5;Special design
11 Application Petroleum chemistry, Compressor, Freezing machine, water solution system, Hydralic System,Project Machine, etc.
12 CE certificate Available
13 OEM Available
