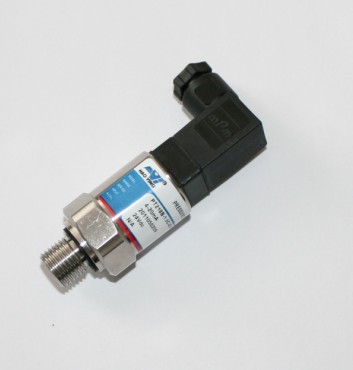

Pressure transmitter - PT218B Specificaton & Trade Terms
| Model | PT218B |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Features:
Combined Error less than ±0.5%
Stainless-steel sealed
Small volume, OEM available
Excellent stability & repeatability
Adopted high-performance sensor chip, PT218B series pressure
transducer/transmitter with amplified linearity processing, high
performance, small volume and integrated construction, are widely used in
air compressor, hydraulic pressure system, constant-voltage water supply system etc.
Specifications
Pressure range 0-0.2MPa-40MPa
Accuracy ±0.25%FS, ±0.5%FS
Supply power 24Vdc(8-36Vdc)
Signal output 4-20mA,0-10V,0-5V,0-20mA
Zero Temp. Shift ±0.02%F.S./℃
Bridge Resistance 1000 ohms±10%
Working Temperature -40℃~125℃ (104℉~257℉)
Over load Pressure 1.5×FS
Electronic Connection Hirschmann
Process Connection G1/4, M14×1.5, M18×1.5,M20×1.5,G3/4,special design
