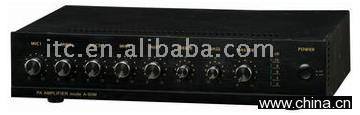

Public Address Mixer Amplifier

Model No.:T-60M, T-120M, T-240M, T-350M Product Origin:China Brand Name:ITC Audio Price Terms:FOB Guangzhou / Shenzhen / Hong Kong Payment Terms:T/T Certification:CCC, CE, UL, RoHS Description:Descriptions: ITC's series of public address mixer amplifiers have power ratings from 60 to 350Wand featuring unbalanced MIC inputs, AUX level inputs and EMC (priority) levelinputs.Priority muting is achieved via MIC 1 and EMC 1 for overriding music for paging andemergency alarms.

Individual gain controls are provided for MIC and AUX inputs;master volume control, bass and treble controls are provided for overall tonecontrol. 4 ohms, 70V and 100V speaker outputs are provided. Extensive protectionsare for short-circuit, clipping and over-temperature.

Mute function and 12V or24V DC interface are available.Features: 1) Four MIC inputs 2) One AUX input 3) Two EMC priority inputs 4) EMC 1 has priority over all inputs except for MIC 1 5) Individual gain controls for MIC and AUX 6) Master volume control 7) Bass and treble tone controls 8) 4 ohms, 70V and 100V speaker output 9) 12V/24V DC interface 10) Mute function Specifications: 1) Rated power output: T-60M: 60W; T-120M: 120W; T-240M: 240W;T-350M: 350W 2) Speaker output: 4 ohms, 70V, 100V 3) Inputs: a) MIC 1-4: 2mV/600 ohms, unbalanced b) AUX1: 150mV/15k ohms, unbalanced c) EMC1-2: 150mV/15k ohms, unbalanced 4) Frequency response: 40Hz-18kHz 5) S/N ration: MIC 1-3: 66dB; AUX 1-2: 80dB 6) THD: less than 0.1% at 1kHz, 1/3 rated power 7) Crosstalk: MIC: 80dB; AUX: 85dB 8) Muting function: a) MIC 1 overrides other input signals with 0-30dB attenuation b) EMC 1 overrides all inputs except for MIC 1 9) Control: individual gain control, master volume control, power switch bass: 10dB at 100Hz; treble: 10dB at 10kHz 10) Indicator: power LED, LED level meter, protection and temperature11) Protection: AC fuse, short circuit and high temperature 12) Power supply: 110-120V AC or 230-240V AC 50-60Hz, 12V DC 13) Dimensions (T-60M/T-120M, T-240M/T-350M): 484 x 435 x 132mm 14) N.W.: T-60M: 7.5kg; T-120M: 9.5kg; T-240M: 17.9kg; T-350M: 19.4kg15) Finish: panel: aluminum plate, black or gold (optional); case: steelplate, blackOuter packing:1pc/carton Carton dimensions: T-60/120: 535 x 445 x 165mm; T-240/350: 560 x 560 x 230mm G.W.: T-60M: 9kg; T-120M: 11kg; T-240M: 20kg; T-350M: 21.5kg
