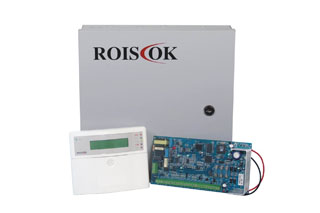

RP248CN 8-72 Zones Control Panel - RP248CN

RP248CN 8 Zone Expandable Control Panel with popular LCD keypads, 8 programmable zones, and the features of network linking and alarm linkage output. It is compatible with internationally popular communication format. With chargeable circuits and clock. It has
memory function, so that the programmed parameters and the information of the control panel's condition would not lose when power is cut.
The function is perfect, the programming is convenient, the installation is easy, and the usage is safe. It supports programming any address information at will. It could greatly reduce the working time of installation and programming.
RP248CN adopts the latest technology, LSI Application, SMT jointing technology, and digital program design to ensure the reliability and stability of the system. Its appearance is compact and elegant with reasonable layout.
The distance is up to 1500M between control panel and module.


LCD Keypads (RP248KCL)

1. Display of Two Lines and 32 Characters
2. 3 Keypad Emergency Zones: Panic[1]+[2], Fire[4]+[5], Special Emergency[7]+[8]
3. Menu Indicates the User Functions and the Installer Programing
4. Key-press with Audible Feedback
5. System Condition Display
6. Trouble Display
7. LED Indication: Alarm, Power, Armed, Disarmed, Bypass, Ready, Tamper
8. User Information is Displayed on Screen (except for password)
9. LCD Backlight
10. Tamper is Supervised
11. Alarm By Duress Code
12. Easy to Use Hot-keys for Simple Bypassing and Not-ready Zones Display
13. One Button for Quick Arming
14. One Button for Quick Perimeter Arming
15. Alarm Memory Display
16. System Trouble Display
17. Up to 4 LCD Keypads can be Connected
