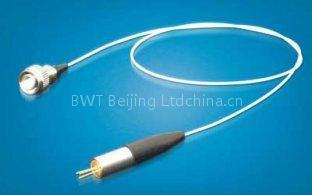

Red Laser Diode K63S03F-0.02W-S
Specifications
- Origin
- Beijing China(Mainland)
- Price Term
- FOB
Red Laser Diode K63S03F-0.02W-S is a Potentiometers product. Key specs — Origin: Beijing China(Mainland); Price Term: FOB.
Product Description
Certification:ISO9001
Key Features of Red Laser Diode K63S03F-0.02W-S：
20mW output power 4µm fiber core diameter 0.13NA 635nm wavelengthApplications of Red Laser Diode K63S03F-0.02W-S：
Printing Aiming beamSpecifications（25℃） | Symbol | Unit | K63S03F- 0.001W-S | K63S03F- 0.002W-S | K63S03F- 0.01W-S | K63S03F- 0.02W-S | |
| Optical data | CW-output power | Po | mW | 1 | 2 | 10 | 20 |
Center wavelength(1) | lc | nm | 635 | ||||
Tolerance of l | - | nm | ±5 | ||||
Spectral width (FWHM) | △l | nm | <3 | ||||
Temperature drift of l | - | nm/℃ | ~0.2 | ||||
Fiber data(2) | Fiber core diameter | Wc | µm | 4 | |||
Numerical aperture | NA | - | 0.13 | ||||
Fiber connector | - | - | FC, ST, SMA-905 | ||||
Electrical data | Operation current | Iop | mA | 33 | 55 | 80 | 100 |
Threshold current | Ith | mA | 25 | 35 | 60 | 60 | |
Slope efficiency | ηD | mW/mA | 0.1 | 0.1 | 0.5 | 0.5 | |
Operation voltage | Vop | V | 2.2~2.4 | ||||
Reverse voltage | Vre | V | 2 | ||||
| PD data | Current | Imo | µA | 100~400 | |||
Other specifications | Operation temperature | Top | ℃ | 10~30 | |||
Storage temperature | Tst | ℃ | -20~+80 | ||||
Expected lifetime | MTBF | h | >10,000 | ||||
