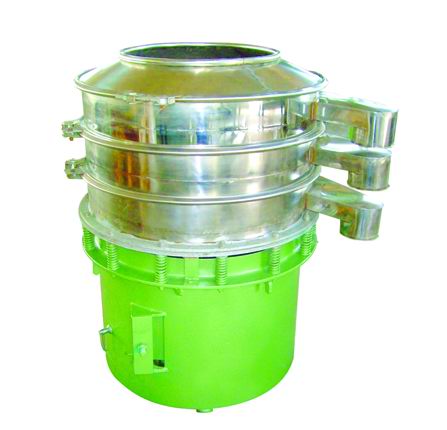

Rotundity Vibroseparator Ceramic Machine - T1S04800 Specificaton & Trade Terms
Model | T1S04800 |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
1, Applications: This machine is suitable for ceramics, mining, chemical, pharmaceutical and other industries, sieving mud, glazes and all granular materials, and clear debris, to ensure uniformity of raw materials. The part of screening made by the stainless steel, it will not cause pollution of raw materials. Eccentric weights can be adjusted, To get the best amplitude to meet the screening needs. Machine is closed, the motor will not damp. It is low noise when used, is a ideal screening device.
2, the main technical parameters:
Capacity: 5 to 8 t /h
Screen frame diameter: 800 mm
Screen layers: 2 layer
Mesh fineness: the first level 100 ~ 150 mesh, the second layer of 150 ~ 18
Frequency: 30Hz
Motor Power: 1.5Kw (4 level)
