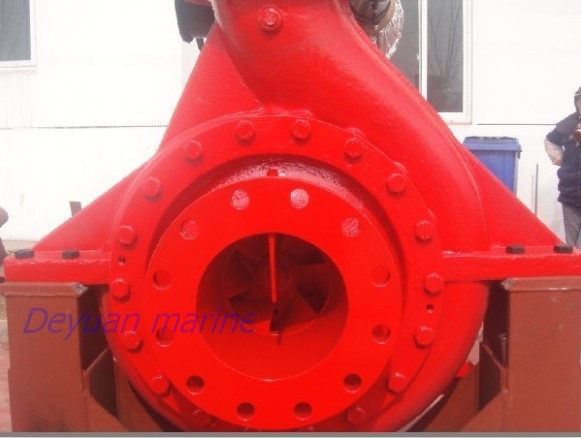

SSCXB250-200 FIRE PUMP - 3495

Type: Horizontal mounted single stage double side suction ,
top discharge centrifugal pump
Model: SSCXB250-200
Medium: seawater
Capacity: 600M3/h
Pump head: 130m
Pump speed: 2100r/min
Power absorbed: 282KW
Pump efficiency: 80%
Dimension of pump inlet: DN250
Dimension of pump outlet: DN200
Material:
Pump shell: Nodular cast iron
Impeller: Ni-Al Bronze
Shaft: Stainless Steel
Bearing: SKF
Shaft sealing: Soft sealing
