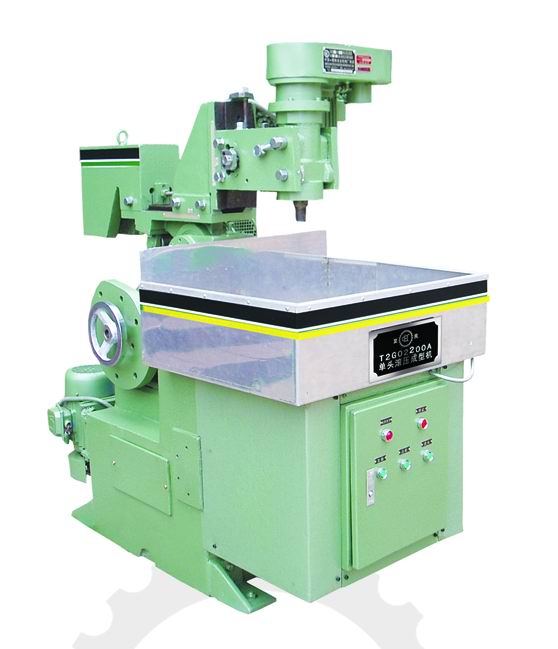

Single Rolling Press Ceramic Machine - T2G02200

T2G02200 Single Rolling Press

Main technical parameters

1. manufacturability: 3~9 pcs/min

2. main shaft speed: 590~780 r/min

3. Rolling head rotate speed: 268~408 r/min

4. diameter: φ≤250mm

5. tallness: H≤180mm

6. Translation: 8mm

7. Main shaft power: 2.2kw

8. Rolling head power: 0.37kw

9. Cam power: 0.75kw

10. weight: 770kg
