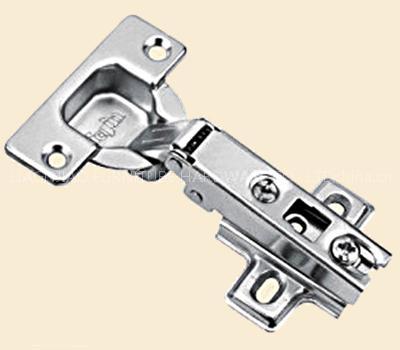

Slide-on concealed Hinge,two-action Model-F

Model-F Full overlay F011, Half overlay F012, Inset F010 Slide-on Concealed Hinge, Two-action Material: steel with nicked plating Max door opening angle: 105° Cup diameter: 35mm Cup drilling depth: 11.3mm Hole pitch: 48mm Cup thickness: 0.8mm Hinge arm thickness: 1.0mm/1.2mm Mounting plate thickness: 1.0mm With spring, Self-closing (F011: Accepts clip-on buffering device to hinge arm) Mounting Plates of 4 designs available 3 dimensional adjustments: side, depth and height Variable side adjustment +2 mm / -2mm Variable depth adjustment +2 mm / -2 mm Height adjustment via mounting plate + 2 mm / -2 mm Guarantee at least 50,000 times opening and closing Pass the 48-hour salt spray test
