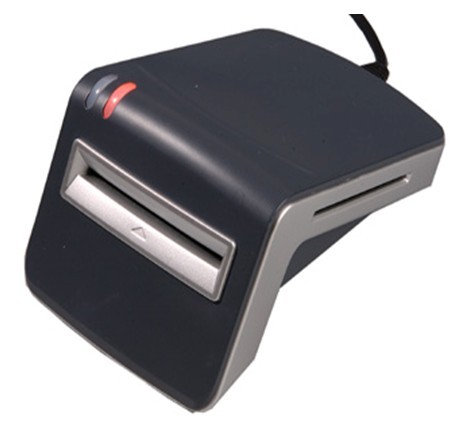

Smart card reader,smart card encoder

Smart card reader,smart card writer,smart card encoder

Support IC

Supports most kinds of the memory cards

includes SLE 4418/28/32/42 ; 5528/42memory cards, and contact CPU cards

Card Standards

ISO7816-1/2/3 Smart card slots, optional SAM Slot (MAX 3)

Memory Storage (internal)

16M / 32M / 64M or customize

Encrypting function

Selectable

Supply Power

5V/70mA

Communication Protocol (mA)

Supports MCU-based cards with T=0 and/or T=1 protocol

support all regular storage card, logic encrypting cards

same card communication speed :115,200 bps

Standards/Certifications

ISO 7816-3,PC/SC,GSM11.11,FCC, CE

Interface

USB2.0 / RS232 serial

Communication Speed T=0:9600-38400bps

T=1:9600-115200bps

Indicator

Two LED lights, indicates power and communication status

Operation system

Windows 98,Me,2K,XP,2003,Unix and Linux

Dimension (L x W x H)

125mmx78mmx50mm

Weight

350g

Operation Temperature

20C to +60C

Storage Temperature

25C to +80C

Optional features

Support current interface function storage, able to support multi operation system and language

development platform, support online update.

Support middle piece development and customization such as CSP, PKCS #11

Support security software use and customization such as Windows Login and VPN

Max Support 3 SAM Slots

Support 2 x ISO7816 same time
