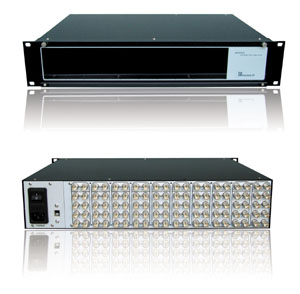

South Korea Asi Distribution Amplifier

Specifications: Modules and psus are hot-swappable from the front Fit up to 10 distribution amplifier modules in 2ru Provides fixed back panel with 10 bncs per module slot - 8 output,1 link distribution amplifier.

(dvb/asi standard) - 80 asi output per one frame - input signal presence detect. - automatic data reclocking:143mb/S,177mb/S,270mb/S,360mb/S (optional) - transformer coupled input. - size - 88 x 483 x 310 mm - weight - 5.6 KG - type - torroidal transformer - input voltage - 100/230v AC (+10%) - frequency - 50 to 60 hz - power - 15watt max x 2(dual)
