Description Of Suspended platform;Suspended cradle/scaffolding - Suspended Platform-ZLP500/630/800/1000

Suspended platform;Suspended cradle/scaffolding - Suspended Platform-ZLP500/630/800/1000 Specificaton & Trade Terms

ModelSuspended Platform-ZLP500/630/800/1000
Place Of OriginChina
BrandDAYOU
CertificationsCE,ISO
Price TermEX-Work
Payment TermT/T
Minimum Order1 SET
Loading PortsOptional
Delivery Time15-20days from factory after receiving down paymen

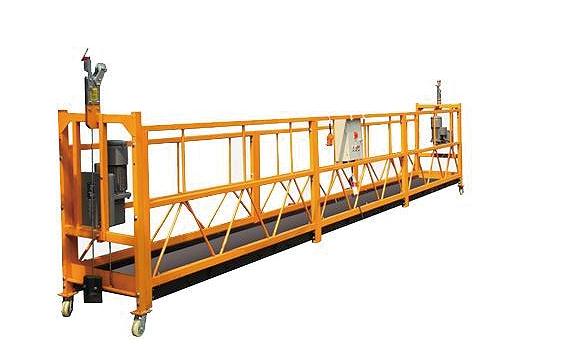

A kind of Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a lightweight rigid steel-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.

Name Specification
Rated Load/kg 500
Lifting speed(m/min) 9-11
Wire Rope 8.6mm
Model Specification ZLP500

Rated Lifting Force 4.9

Motor Power/kw 1.1*2

Voltage/V 380

Speed/(r/min) 1420

Braking Torque/(N.m) 15

Safety Lock Model LSB30

Allow Wallop/KN 30

Inclined Cable Locking Angle 3°~8°
Front Beam Length/m 1.3-1.7

Bracket Height Adjustment/m 1.365-1.925
Weight/kg Suspension Platform(Including hoister, safety lock, Electrical control system) 310

Counter-weight 750
