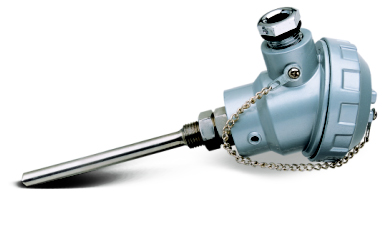

TS-9001 Temperature Sensor

TS-9001 series temperature sensors are designed to measure temperature of air or water pipe to cooperate TC-8000 controller in any environment including high/low temperature and darkish/good condition. Adopting NTC heating resistance, the sensor has high sensitivity, high stability, corrosion-resistance, long using life and easy mount.

The sensor can measure air/water temperature accurately and quickly, then transmit signals to controller so as to accurately control air/water temperature.

Features ·Sensing element：NTC 10K ·Temperature range：0～50℃ ·Precision：+/-0.2K ·Screw Joint Connection ·Stem material: brass, nickel-plate coating ·Terminal Box material: PA burn-resistance plastic ·Max temperature tolerance of terminal box: 70℃
