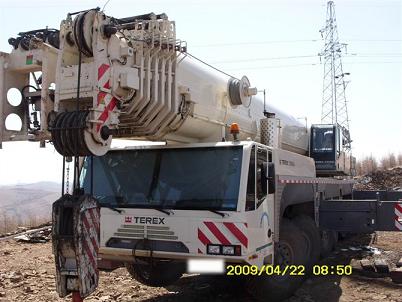

Terex-Demag Mobile cranes - AC 250-1 Specificaton & Trade Terms
| Model | AC 250-1 |
|---|
| Place Of Origin | Germany |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Model: AC 250-1
Year: 2005
Capacity: 250ton
Technical details Maximum lifting capacity / radius: 250 t / 3 m
Main boom: 14,5 - 80 m
8 section
Main boom extension: 10 - 36 m (33 - 118ft)
Maximum system length: 72,1 + 36 = 108,1 m (237 + 118 = 355ft)
Overall length: 16,68 m (54.7ft)
Carrier length: 14,98 m (49.1ft)
Turning radius over boom head: 13,9 m (45.6ft)
Carrier engine: DaimlerChrysler OM 502 LA (448 kW / 609 PS / hp)
Superstructure engine: DaimlerChrysler OM 906 LA (205 kW / 279 PS / hp)
Maximum travel speed: 85 km/h
Drive / steer: 12 x 8 x 10
Tyres: 16.00 (14.00 / 17.5 / 20.5)
Maximum gradeability: 67 %
Maximum counterweight: 96,6 t (213,000lbs)
Tires, winches, pump, motor, engine are in good condition.
With all original documents.
Origin: Germany
