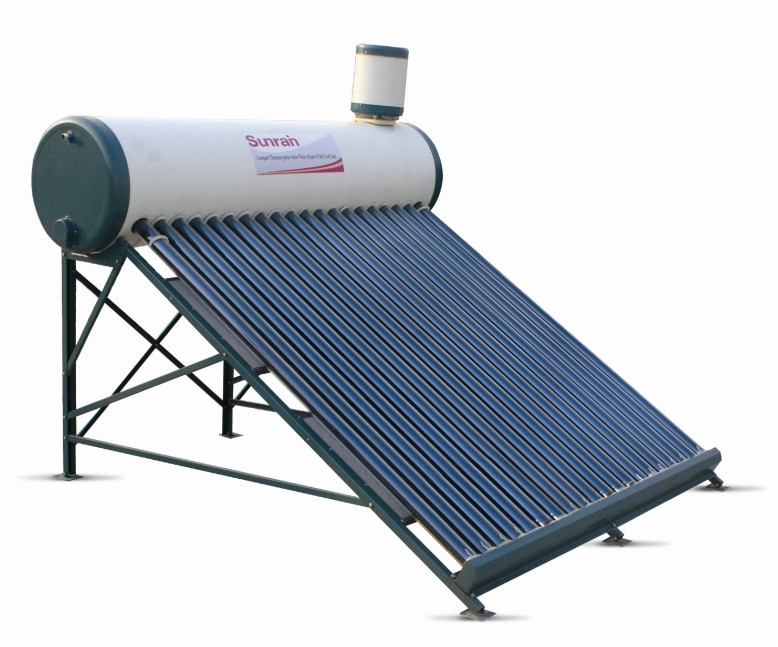

Two Pipes Inlet-Outlet Solar Water Heater

Descriptions of Two pipe Inlet-outlet Solar Water Heater 1. The Two pipe inlet-outlet non-pressure solar hot water heater relies on the natural circulation of water between the collector and the tank, with auto water feeding. 2.

When water in the evacuated tubes is heated, it will rise naturally into the tank, and then the cold water in the tank will flow down to the bottom of the evacuated tubes, resulting in circulation throughout the system 3. Solar thermal energy can be efficiently used by it to generate a practical energy

Features of Two pipe Inlet-outlet Solar Water Heater 1. Low cost of ownership, increased reliability 2. Scientific structure, easy installation 3. High efficient solar heating: with daily average efficiency higher than 60%.

The details of Two Pipes Inlet-Outlet 1) Inner tank: Stainless steel SUS304-0.5mm 2) Vacuum tube: QB-AL-N/AL-47-1500/58-1800 3) Outer tank: Painted steel-0.4mm/aluminum-zinc coated steel-0.45mm/stainless steel SUS304 4) Frame: Coated galvanized steel-1.5mm; Stainless steel SUS430-1.55mm. 5) The material of insulation: Polyurethane 50mm/60mm/65mm.

6) The reflector: Aluminum component; AL99.85% surface oxidation; Stainless steel
