U581 code reader - U581 Specificaton & Trade Terms
| Model | U581 |
|---|
| Place Of Origin | U581 code reader |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Product name：U581
Item：
Details：
U581

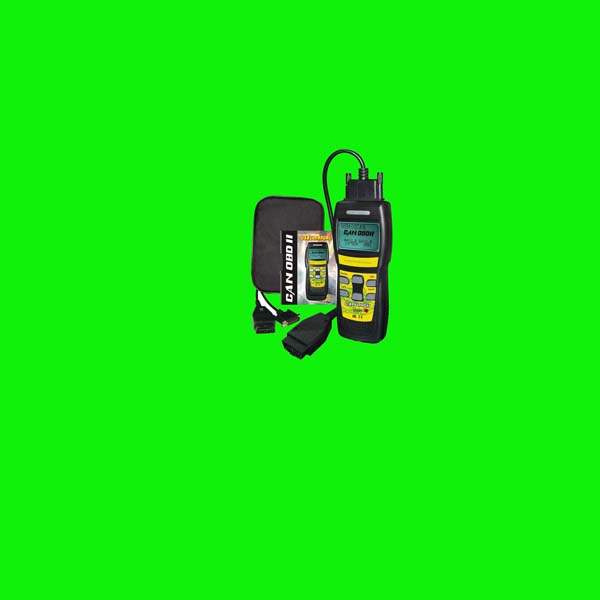

U581 CAN OBDII/EOBDII Memo Scanner(Live Data)
1.1 Tool Description
1.LCD Display , 128*64 pixel display with contrast adjustment, Backlit
2.enter key selects displayed
3.exit key go back to the previous screens
4.up/down arrows-moves the selection pointer and scrolls up or down.
5.LEFT/RIGHT arrows-Select responses and moves cursor.
6.OBDII connector cable, connect car and the scan tool
1.2 Product Specifications
• Display-Backlit LCD,128*64 pixel display.
• Operating Temperature- 0 to 50
• Internal Power- 9v Cell
• External Power: 10.0 to 15.5 vols provided via vehicle battery
• Update by internet
Dimensions:
• 195mm Length 81mm Width 32mm Height
• OBDII connector , 1500mm
1.3 Product Features
Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols)
Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)
trouble codes display on the LCD, needn't the code book.
Scanning live data
Reading Freeze Frame Data
Testing I/M Reading Status
Reading vehicle info
Rescanning Data
VEHICLE COVERAGE:
• GM '96 - Current Year (OBD-II)
• Ford '96 - Current Year (OBD-II)
• Chrysler '96 - Current Year (OBD-II)
• Toyota '96 - Current Year (OBD-II)
• Honda '96 - Current Year (OBD-II)
• NISSAN '96 - Current Year (OBD-II)
• All other Asian and European '96 - Current Year (OBD-II)
• All new CAN protocol cars.
U581 Languange support:German,English,French,Italian,Czechish,Spanish,Finnish,Turkish,Huangarian,Polish.
G.Weight: 1KG
