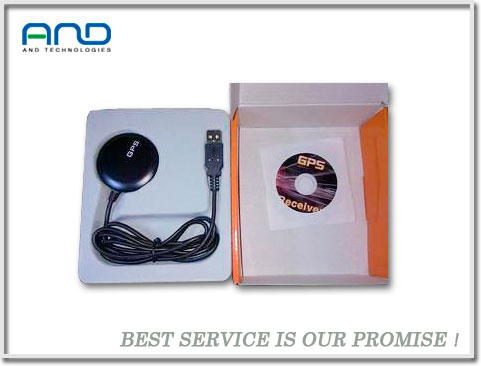

UB-353

1) Globalsat GPS receiver UB-353

2) Can be used as GPS navigator

3) Adopt ublox UBX-G5010 Chipset

UB-353 is dedicated designed for connecting the portable device such as PDAs /Smart Phones/Laptop Computers. Based on the newst ublox UBX-G5010I chipset, UB-353 performs its high quality, low power consumption, portable, compact size,rechargeable and removable battery functions to your personal,vehicle, marine etc. navigation and tracking device. It uses ublox 5 chipset which can track up to 16 satellites and 50 channels at a time and perform fast TTFF in weak signal environments

Features

Arallel satellite-tracking channels for fast acquisition and reacquisition

200,000+ effective correlators for fast TTFF and extremely fast TTFF's at low signal levels

Built-in hardware Tracking Loop Processor WAAS/EGNOS Demodulator support

Built-in rechargeable lithium battery for Time- To- First-Fix(TTFF).

Support NMEA 0183 v2.2 data protocol

Enhanced algorithms provide superior navigation performance in urban, canyon and foliage environments

Product Features

ublox 5 high performance and low power consumption GPS Chipset

Very high sensitivity (Tracking Sensitivity: -160 dBm)

Extremely fast TTFF ( Time To First Fix) at low signal level

Two serial ports

Built-in LNA

3Mbit of internal ROM and 2Mbit of RAM

Compact size:53×19.2mm

One size component, easy to mount on another PCB board

Support NMEA 0183 and ublox binary protocol

Product Specifications

GPS Receiver

Chipset ublox UBX-G5010

Frequency L1, 1575.42 MHz

Code C/A Code

Protocol NMEA 0183 v2.3

GALILEO L1 open service(with upgrade)

Default: GGA, GSA, GSV, RMC

Support: VTG, GLL, TXT

U-blox binary and NMEA Command

Available Baud Rate 9,600 bps

Channels 50

Internal ROM 3Mbit of ROM and 2Mbit of RAM

Sensitivity Tracking:-160dBm

Cold Start 29 seconds, average

Warm Start 20 seconds, average

Hot Start 1 second, average

Reacquisition -160dBm Accuracy Horizontal Position: Autonomous < 2.5m average, SBAS < 2.0m average

Velocity: 0.1 m/s

Timepulse signal: RMS 30 ns

Maximum Altitude
