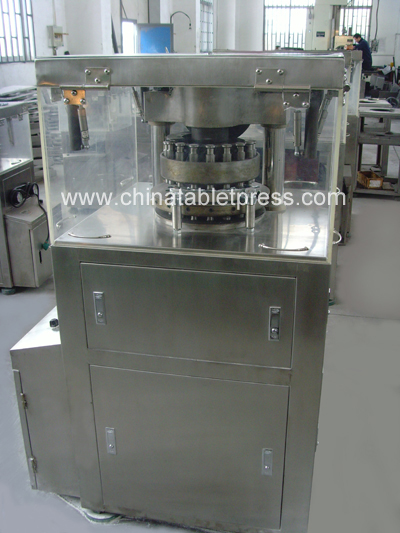

VFP17 punching rotary tablet press - VFP17 Specificaton & Trade Terms
| Model | VFP17 |
|---|
| Place Of Origin | changzhou of china |
|---|
| Packaging | standard packing |
|---|
| Brand | chengguagng |
|---|
| Price Term | CIF |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 100 |
|---|
| Minimum Order | 1 |
|---|
| Loading Ports | Shanghai |
|---|
| Delivery Time | 3 |
|---|
We can manufacture the tablet press machine as you request.
This machine is a kind of automatically continual rotary press equipment. It is widely used to press all kinds of granular materials into tablet, as a kind of fundamental equipment in pharmaceutical machinery, chemical, food, daily goods and other industries .It is suitable for pressing any kind of tablet, sweet, camphor ball, metallurgical granular film and so on.
Model VFP17
Dies 17sets
Max Pressure 80Kn
Max Dia of Tablet 20mm-25mm
Max Depth of Fill 28mm
Max Thickness of Tablet 14mm
Turret Speed 1-18r/min
Production Capacity 18000-20000pcs/h
Motor 3.0kw 1430r/min
Frequency Inverter 3.7kw
Overall Size 860*680*1600*mm
Net Weight 850kg
