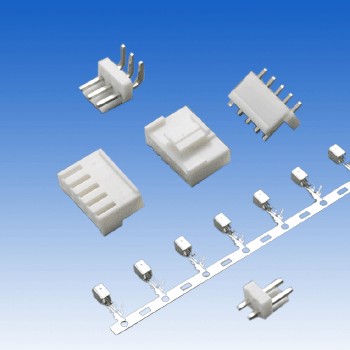

VH Connector
Listing ID#10840
ModelVH
CategoryElectronic Accessories & Supplies
Electronic Accessories & Supplies

VH Connector

Specifications

Origin
China
Request Quote
Quick answer

VH Connector is a Electronic Accessories & Supplies product. Key specs — Origin: China.

Product Description

SPECIFICATIONS POLES: 2~12

Applicable wires: AWG22#~18#

Pitch:3.96mm

Applicable PC board Thickness: 1.6mm

Temperature range:-25℃~85&#8451

Voltage rating: 250V.AC/DC

Current rating: 7A

Contact resistance: ≤0.02&#937

Insulation resistance: ≥1000M&#937

Withstand Voltage: 1500V.AC/Minute

Material Housing(Female Connector): Nylon UL94V-0

Wafer(Male Connector): Nylon UL94V-0

Terminal: Phos. bronze Tin Plated
