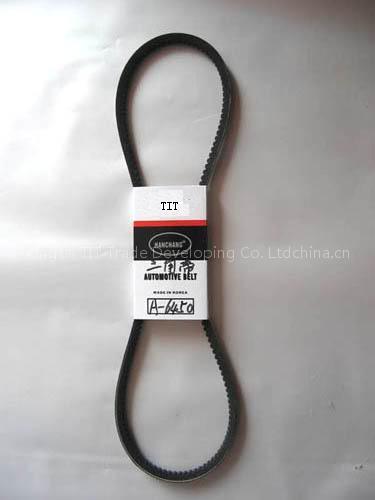

V-belt

is an exporter in China. We can supply many kinds of V-belts. Our products are good in quality, competitive in price and also complete in size.

Features 1) Brand: TIT 2) Material: High quality raw rubber 3) Structured with special frames 4) Our V-belts are resistant to heat, oil, fating 5) Type: A, B, C, D, SPA, SPB, SPC, SPZ, 3V, 5V, 8V 6) OEM is available, can be produced as customers' design and samples Wrapped V-belt (Unit: mm) Type Width(dp) Upper Width(b) Height(h) Wedge angle Z(O,M) 8.5 10 6 40&deg A 11 13 8&nbsp B 14 17 11&nbsp C 19 22 14&nbsp D 27 32 19&nbsp E 32 38 25&nbsp nbsp;Narrow V-belt (Unit: mm) Type Upper Width(b) Height(h) Wedge angle SPZ 9.7 8 40&deg SPA 12.7 10&nbsp SPB 16.3 13&nbsp SPC 22 18&nbsp 3V 9.5 8&nbsp 5V 16 13.5&nbsp 8V 25.5 23&nbsp Hexangular Belt (Unit: mm) Type Length of the belt AA 1270-4572 50-180 BB 2032-6350 80-250 CC 2540-16000 1 Mr.Mars
