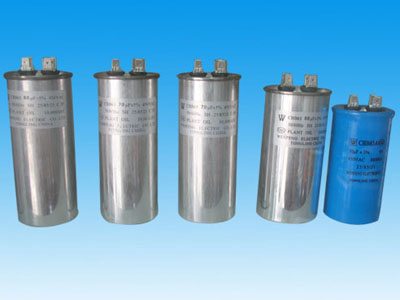

Water pump capacitor CBB65 - CBB65

Water pump capacitors(CBB65) takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in Aluminium cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family Water pumps and high power illuminators for the sake of power factor compensation.So it can be also called Oil capacitors, Vaccum capacitors, Compressor capacitors, Filter capacitors, Aluminium electrolytic capacitors, Air conditioner capacitors, Anti-explosion capacitors, AC Motor capacitor, Fan capacitor and so on
Water pump capacitor 's (CBB65) Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
. Capacitance tolerance:± 5%
I.R:≥3000S（MΩ.μF）
Water pump capacitor 's (CBB65) Dielectric dissipation factor:
tgδ≤0.002 (50Hz～100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current.
Water pump capacitor 's (CBB65) Dimensional specification (mm)
1.Rated voltage(VAC):200,250,370,400,440,450
2.Nominal capacitance (MFD) :More than 1μF
3.Size(mm) (1).D: 40,45,50,55,60,70,80,100,25+5,30+5, 35+5,50+5
(2).H: 60,65,70,75,80,85,90,95,100,105,110,115,120,125,135,138
Note：1、Other capacitance and dimension serials can be specified in compliance with customer's request. 2、Terminal forms can be made in conformity to the requirements of agreements with customers.
