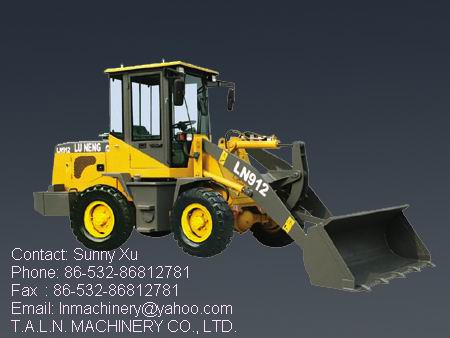

Wheel loader 912 - 912 Specificaton & Trade Terms
| Model | 912 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Note:
1. We Manufacture: Road roller, Road cutter, wheel loader, excavator, backhoa loader, Drilling machines, mining machines, tramcar, electric loader, roadheader, mini dumper, road construction machine,...etc.
2. Any products interested you please feel free to contact us,and please do tell us your Email, Phone, etc. We will back you very soon.
Items
Technical Specifications
Rated weight(kg)
1200
Rated capacity(mз)
0.6
Max breakout force(KN)
36
Max.dump height (mm)
2650
Max.dump reach(mm)
1000
Lifting time (s)
≤4
Total cycle time(s)
≤8
Travel speed （km/h）
GRADE I I 6
GRADE II II18
Max turning angle（°）
Each 35°（each direction）35°
Turning radius ( outside the rear wheel(mm）
3600
Wheel base(mm)
1820
Tread (mm)
1400
Engine
490G
Rated power(KW)
33
Rated speed(rpm)
2400
Transmission system type
Static hydraulic -mechanical type
Steering system
load sensing, prior steering
Overall dimensions (mm)
5300×1680×2400
Operating weight(kg)
3200
