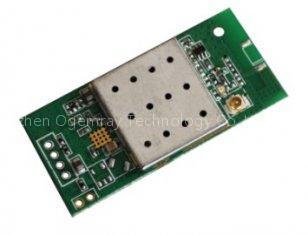

WiFi modules GWF-2M01

Delivery Time:10 DAYS

Certification:CE/FCC WLAN RT2571+RT2528 Chipset 802.11 b/g compliance USB2.0/1.1, 2.4GHz Peak rate 54Mbps External antenna via IPEX receptacle WHQL;Cisco CCX Linux 2.6X;Mac OSX Windows CE, Windows 2000/XP/Vista Operating

Voltage: 3.3VDC ( or 5VDC) 5% USB Connection : 4-pin, 2.0mm pitch male jumper

Size:41.0*19.0*8.8(Pin height)mm

Features: Complies with IEEE 802.11b/g. Dynamic data rate:Maximum data rate up to 54mbps .Auto fallback switching with 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2 and 1Mbps. Security support for 64/128 WEP, WPA, WPA2. Operates in 2.4GHz frequency bands. Antenna configuration:I-PEX socket for extemal antenna. Standards IEEE802.11b/g Operation Frequency USA(FCC)2.412GHz~2.462GHz (channel1 -11)ISM band Europe(CE):2.412GHz~2.472GHz(channel1-13)ISM band Channel Bandwidth 20MHz Protocols 802 .11b:CCK, QPSK, BPSK, 802.11g:OFDM Antenna External Antenna via I-PEX receptacle Security WPA/WPA2, 64/128/152-bit VEP, VPS Transmit Output Power 11b:19±1.0Bm 11g:15±1.0Bm Receive Sensitivity 11b:-83d Bm 11Mbps(Typical) 11g:-68d Bm 54Mbps(Typical) Operating Voltage 3.3VDC±5% (or 5.0VDV±5% upon special requirement) Bus Intreface USB2.0 USB Connection 4-pin, 2.0mm pitch male jumper Antenna Impedance 50 ohm    Software and system Informatiom Operation System CPU Supplier Driver Linux2.4/2.6 ARM, MPSLL Available Windows 2000XP/Vista X86 Platform Available Windows CE5.0/6.0 ARM, MIPSLL Available
