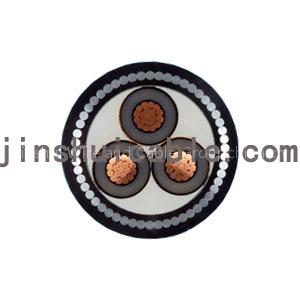

XLPE Insulated Power Cable (6-10kV )

1.

Standard of Product The 110kV XLPE Insulated power cable is produced according to the standard GB/T11017 Power cable with cross-linked Polyethylene insulation and their accessories for rated voltage of 110kV,which are equivalent to IEC 840 Tests For power cables with extruded insulation for rated voltage above 30kV(Um=36kV)up to 150kV(Um=170kV).AEIC CS7 Specifcations for crosslinked polyethyene insulated shielded power cable rated 69 through 220kV XLPE cable to standard GB/Z18890 Power cable with cross-Linked polyethlene insulation and their accessories for rated voltage of 220kV which is equivalent to SS 424 14 17 power cables-XLPE-insulated cables with extruded oversheath and rated voltage 12-420kV-Testing,and some extension with reference to IEC 840 and AEIC Cs7.2.

Environment and Characteristics for Use of the Cable2.1 Environment for use of the cable is listed in the following table.ApplicationType Description Application Cu Core Al Core YJLW02YJLW03YJLW02-ZYJLW03-Z YJLLW02YJLLW03YJLLW02-ZYJLLW03-Z XLPE Insulated CorrugatedAluminium Sheathed PVCOver Sheath Power Cable For laying in tunnel or duct,used indamp environment or the place wherewater level is comparatively high,andable to bear moderate pressure.

YJQ02YJQ03YJQ02-ZYJQ03-Z YJLQ02YJLQ03YJLQ02-ZYJLQ03-Z XLPE Insulated Lead Sheathed,PVC Over Sheathed Power Cable. Ditto,unable bear pressure.
