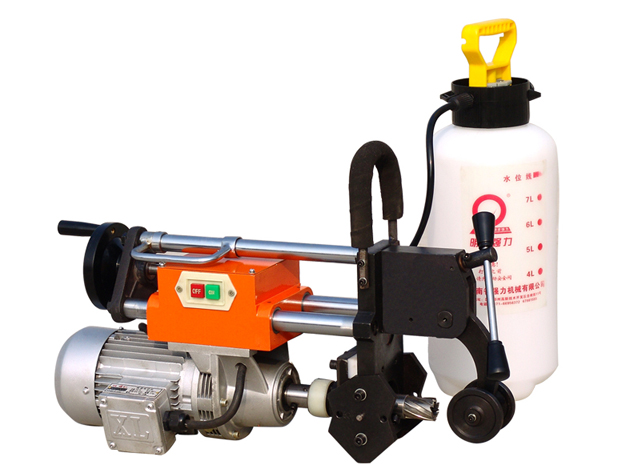

ZG-31 Electric Rail Drilling Machine - ZG-31 Specificaton & Trade Terms
| Model | ZG-31 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Application:
Special tool for processing bolt connectors or electrical wiring holes on railway rail radials.
Feature:
1.Motor driven, without the emission of noise and exhaust air, applicable to operations in factory building and power-supplied environment..
2.Swift clamping and convenient operation.
3.Accurate positioning, high precision of drilling.
4.Adopt hollow drill bit, with high efficiency of operation.
5.Portable design, quickly up and down the rail.
Main technical parameter:
1.Rated power: 0.75KW.
2.Rated voltage: ~380V(Three-phase).
3.Drilling diameter range: φ9.8mm /φ20mm/φ22mm/φ24mm/φ31mm.
4.Spindle speed: 200rpm.
5.Aperture precision: ±0.5mm.
6.Total weight: 31kg.
