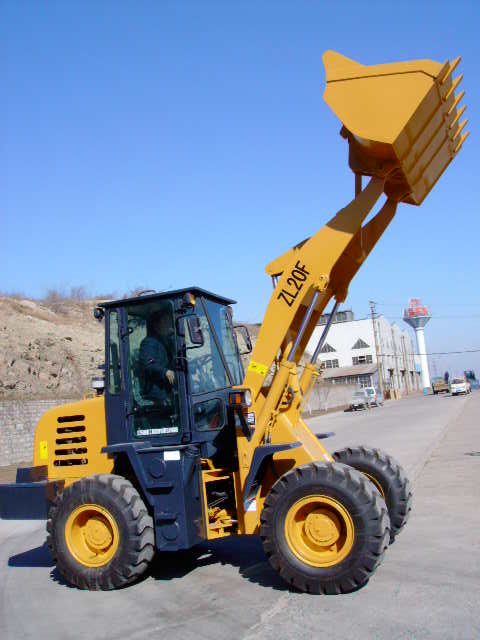

ZL20 Mini Loader-2000KGS - ZL20 Specificaton & Trade Terms
| Model | ZL20 |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Main Specification for ZL-16
Item ZL16
Rated load(kg) 1600
Bucket capacity(m3) 0.8
Wheel distance(mm) 1400
Axle-base(mm) 2050
Loader clearance radius(mm) 4500
Mini base to the ground(mm) 260
Dump clearance(mm) 2700
Distance acc.to the height(mm) 900
Time of raise(s) 4
Hydraulic cycle time(s) 8.5
Turns to pick the strength mose greatly(kn) 36
Drive ways four are drive
Operating weight(kg) 3500
Overall dimensions(mm) 5200*1700*2700
Engine model Weichai 4100
Engine rated power(kw) 45
Engine rated output(rpm) 2200
