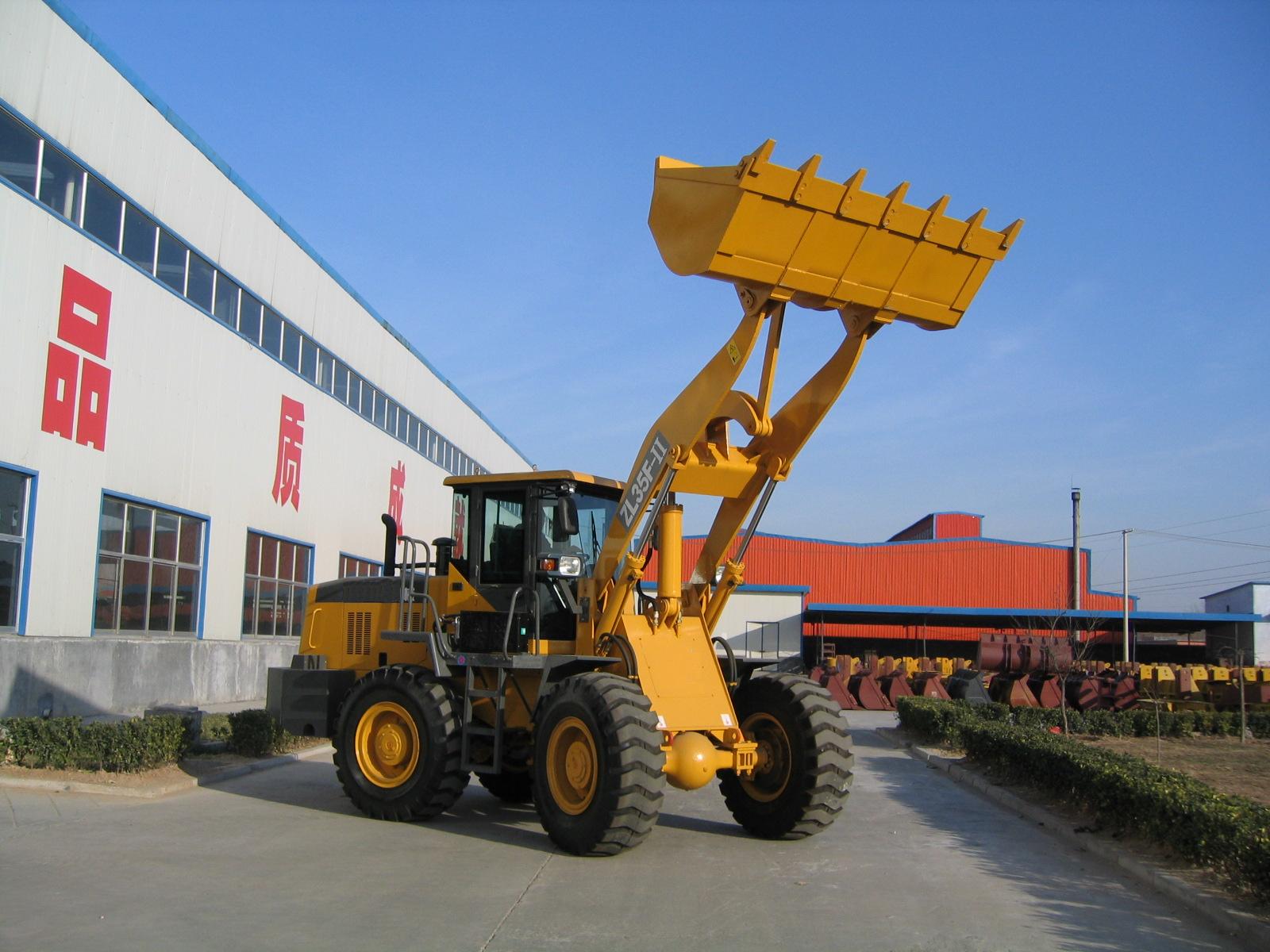

ZL35F Wheel loader

ZL35F Specification 1、Technical features Item Performance Item Performance Standard bucket capacity (m3) 1.8 Min. turning radius outside rear wheel(mm) 6195 Rated load(kg) 3000 Min. turning radius outside bucket(mm) 6630 Max.traction force（by engine）（kN） ≥110 Max. break force（kN） ≥96 Static tipping load(kN) ≥66 Grade ability(°) 30 Travel speed Speeds Ⅰ Ⅱ Ⅲ Ⅳ Forward(km/h) 0～7 0～12 0～27 0～35 Reverse(km/h) 0～7 0～12 0～27 —— 2、Dimension and weight Item Performance Item Performance Length（With bucket on ground）(mm) 6770 Bucket width(mm) 2510 Height(mm) 3280 Tread(mm) 1865 Width from outside wheel(mm) 2310 Wheelbase (front/back)(mm) 2850(1250/1600) Max Dumping height（-450dump angle）(mm) 2950 Operating weight(kg) 10500 Item 1050 Axles 2 Length（With bucket on ground）(mm) 370 3、Engine Item Performance item Performance Model DEUTZ TD226B Cylinder No.

6 Type Straight-lined, water cooled,direct injection Cylinder bore/stroke（mm） 102/120 Rated power(/kW) 92 Min fuel consumption ration(g/kW.h) ≤210 Rated rmp(r/min) 2200 Max torque (N.m) 486 Displacement（ml） 5.9 Emission standard JB/T8891 Tier II 4.Transmission system Item Performance Torque conventor Type Single phase 3 element single turbo hydraulic converter Torque ratio 2.3 Cooling system Circulated, water cooled Transmission Type Power shift Shift Forward 2 Reverse 1 Transmission ratio ForwardⅠ 3.91 ForwardⅡ 2.304 ForwardⅢ / ForwardⅣ / ReverseⅠ 3.91 ReverseⅡ / Reverse Ⅲ / Working pressure（MPa） 1.3～1.7 Main drive type Single stage, spur gear Gear ratio 6.167 Final reduce type Single stage, planetary shift Gear ratio 3.12 Driving axle and tire type Driving axle and tire Tire specification 17.5－25 Tire pressure（MPa） Front wheel 0.333～0.353 Rear wheel 0.275～0.294 Break system Service break Air over hydraulic disc brake on 4 wheels Service break（MPa） 0.45～0.68 Parking break Air break

5.Streeing system Itme Performance type Full-hydraulic articulated steering Pilot –acinated valve VLE-150 Steering Pump CBGj2063/2063 Steering cylinder-cylinder bore×piston rod diameter×stroke (mm) HSGF-80×45×327 Redirector BZZ5-E630C Steering angle(°) 38° Working pressure（Mpa） 14MPa

6、Working system item Performance type Single joystic pilot contorl Boom cylinder- cylinder bore×piston rod diameter×stroke (mm) HSGF-125×70×771 Bucket cylinder- cylinder bore×piston rod diameter×stroke (mm) HSGF-140×80×502 Pump CBGj3100/1010C-XF Multiple directional control valve type 2 function:32-16/3 function:D32A-16 Working pressure 16 MPa Lifting time（full loaded） ≤5.3s Lowering time（empty） ≤2.9s Dumping time（empty） ≤1.0s Total ≤9.2s 7.Service refill capacities Item Performance item performance fuel 140L Engine 16.3L Hydraulic oil 130L Gear box 20L Axle(main drive and final reducer 2x16L Break system 4L
