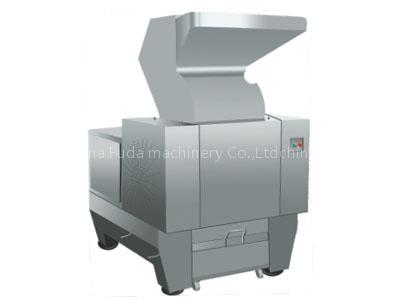

bone crusher

Bone Crusher is my local company to develop new high-claw type of equipment to crush. It tool to optimize the design so that the tool dispersed by force, to improve the individual blades of the shear force and impact-resistant. Pre-blade, cutting blade angle to increase and improve the efficiency of cutting, grinding particle uniform.

Hopper for dealing with noise, stainless steel, effective and quiet. Selection of high-quality tool steel with a special heat treatment, superior wear-resistance, flexible adjustment tool to install and use multiple blunt after grinding, repeated many times, long service life.

With electrical overload protection device, part of the feed and supply chain protection, to protect the use of security personnel. It can be used in conjunction with the conveyor belt, and out of the use of automation is expected to reduce labor intensity.

This machine is simple, easy to maintain clean, compact, the stability of work, production, low temperature rise, non-possession of material, adjustable size and so on. It’s particularly suitable for dry, fresh large cattle bones, pig, sheep bones, bone donkey, and other large animal bone and fish bone kind of broken, shattered the scope of 5-80mm.

Widely applied to a variety of sausages, ham, luncheon meat, ball, quick-frozen foods, salty flavor, extract the bone marrow, bone, bone glue, chondroitin, bone, bone-extraction, bio-products, instant noodles, puffed food, complex Spices, food ingredients, pet food and frozen meat category, and other hard materials broken.Model Capacity(kg/h) Crushing Chamber(mm) Power (kw) Dimensions(mm) Weight(kg)

PG300 30-100 250 × 210 4 950 × 630 × 110 290

PG500 200-600 500 × 250 11-15 1700 × 1350 × 1760 750-1000

PG1000 1000-4000 1000 × 800 75 1800 × 2100 × 3150 4000
