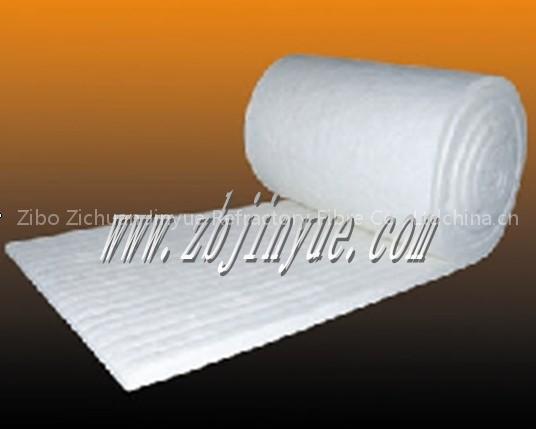

ceramic fiber blanket
Listing ID#10215973
Model1430
CategoryCeramic Fiber Rope

ceramic fiber blanket

Specifications

Brand
jinyue
Origin
china
Price Term
FOB
Request Quote
Quick answer

ceramic fiber blanket is a Ceramic Fiber Rope product. Key specs — Brand: jinyue; Origin: china; Price Term: FOB.

Product Description

Classification Temperature:

Common Type Aluminium Silicate Silk-spinning Tapetum Fibrosum 1100 oC

High Purity Type Aluminium Silicate Silk-spinning Tapetum Fibrosum 1260 oC

High Alumina Type Aluminium Silicate Silk-spinning Tapetum Fibrosum 1360 oC

Zirconium-contained Type Aluminium Silicate Silk-Spinning Tapetum Fibrosum 1430oC

Manufacturing Technology & Product Characteristics:

All kinds of aluminium silicate silk-spinning tapetum fibrosum are made of common, high-purity, high alumina and zirconium-contained type aluminium silicate fiber cotton which manufactured by means of silk-spinning technology and through working procedures such as needling, hot forming, length cutting and width cutting and rolling. Besides owning the same excellent performance as its homologous variety bulk aluminium silicate fiber cotton, needled blanket of various kind own excellent tensile strength as well. So that needled blanket owns even textile and smooth surface.

Needled blankets of different capacity and thickness provide users with wide choice range and require optimal heat-insulation structure and energy-saving benefit.

Product Name
Item

Common Type

High Purity Type

High Alumina Type

Zirconium -contained Type

Classification Temperature ( oC)

1100

1260

1360

1430

Working Temperature (oC)

<1000

1100

1200

1350

Color

White

Pure white

Pure white

Pure white

Bulk density (kg/M3 )

96/128

96/128

128/160

128/160

Permanent Linear Contraction (%) (Heat preservation for 24 hours and bulk density is 128kg/M3)

-4
(1000 oC)

-3
(1100 oC)

-3

(1200oC)

-3

(1350 oC)

Coefficient of heat conductivity under each hot side temperature (W/m.k) (Bulk density is 128kgM3)

0.09(400 oC)
0.176(800 oC)

0.09(400oC)
0.176(800oC)
0.22(1000oC)

0.132(600 oC)
0.22(1000oC)

0.176(800 oC)0.22(1000oC)

Compressive Strength (MPa) (Bulk density is 128kg/M3 )

0.04

0.04

0.04

0.04

Chemical Composition (%)

AL2O3

44

47-49

52-55

39-40

AL2O3+SiO 2

96

99

99

-

AL2O3 + SiO 2; +ZrO 2

-

-

-

99

ZrO 2

-

-

-

15-17

Fe 2 O 3

<1.2

0.2

0.2

0.2

Na 2 O+K 2 O

?¨¹0.5

0.2

0.2

0.2

(mm)Product Dimension (mm)

Common Specification: 7200*610*10-50; other specifications can be customized according to users'''''''''''''''''''''''''''''''' requirements.

Application: Industrial building material furnace, heating plant and high-temperature tube wall liner.

1 Electric power boiler, turbomachine and nuclear electricity heat insulation

2 Wall liners for industrial high-temperature conversion unit and heating equipment

3 Fireproofing and heat insulation of high-rise building

4 Heat insulation of furnace door and head cover

5 High-temperature filtrating material

Working Temperature:

It lies on conditions such as application condition, heat source variety and environment atmosphere.

Technical Characteristics:

1. Low thermal conductivity and low thermal capacity

2. Excellent thermal stability and thermal shock resistance

3. Excellent tensile strength

4. Excellent heat insulation,
