Listing ID#10000615

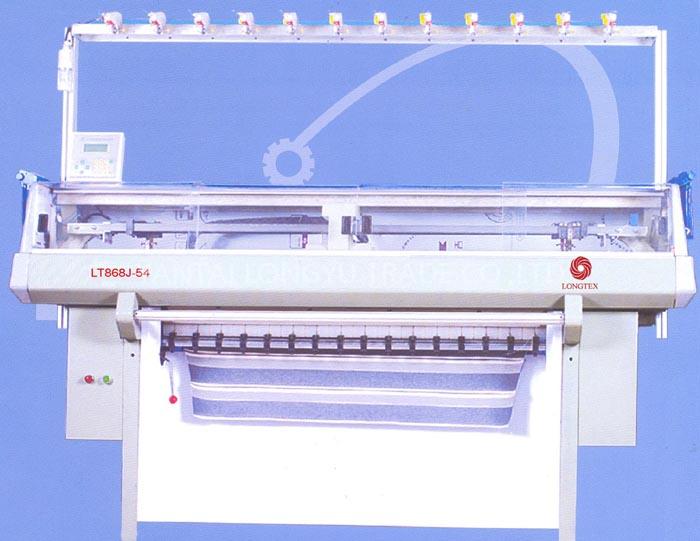

ModelLT868J-54
CategoryFurniture Making Machines
Quick answer
collar machine is a Furniture Making Machines product. Key specs — Origin: China (Mainland).
Product Description
| TYPE | LT868J-54 | LT868K-52 |
| WIDTH | 52" 54" 80" | |
| GAUGE | 5Gã€6Gã€7Gã€9Gã€12Gã€14G〠16G | 5Gã€6Gã€7Gã€9Gã€12Gã€14G〠16G |
| KNITTING SPEED | Controlled by frequency conversion to adjust speed,6 grade speed ,Max.Speed:1.2m/sec | |
| NEEDLE BED MOVEMENT | 2.5needles pitch each of the left and the right | |
| KNITTING NEEDLE TYPE | Upper lwer foot knitting needle | |
| STITCH | Step motor 150 levers program instruction adjust,8-group stich. | |
| MAIN FUNCTION AND FEATURE | This kind of machine adopts computer program control,manily uses in material ,such as cotton,flax,silk,woolen, polyester fiber,blending fabric to realize auto knit of the woolen sweater and clothing appendix .And also have function of auto 6-yarn change,auto adjust stich,auto needle bed movement ,auto stop machine when trouble occured etc. | |
| TRANSMISSION MODE | Synchronous belt moves back and forth,can freely adjust working width | |
| CONTROL MODE | Controlled by the computer program,LCD large screens display. | |
| POWER | AC220V±8%50HZ 0.3KVA OR 110V | |
| PACKING SIZE | 52"2250*7500*1901 80"3050*900*1900 | |
| GW | 52"400kg 80"520kg | 52"380kg 80"520kg |
| NW | 52"480kg 80"620kg | 52"460kg 80"600kg |
