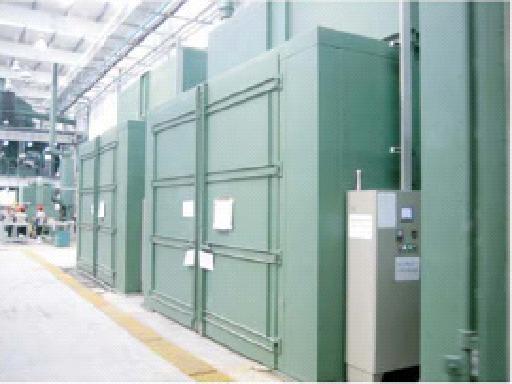

curing and drying chamber - SH

1. imported PLC, touch operation panel monitoring system enable visual control on multiple programs
2. Advanced air plenum system ensures uniform temperature and moisture in chamber and superior plate quality with excellent chemical &physical performance.
3. dry &wet bulb sensor imported from Japan characterized by high temperature resistance, corrosion-proof ,no moisture condensation and high accuracy.
4. there are to humidification modes: atomized water or steam jet ,allowing low ,medium temperature curing . Optional electric , steam or gas heating mode.
5. my email is eric5751 at hotmail dotcom
Model SHX-G SHX-HT(high temperature type)
Performance Curing cycle 35~75℃ >98% RH 35~95℃ >98%RH
Drying cycle Ambient temperature~85℃
Accuracy Less than 2℃;less than 2%RH
Dimension(mm) 4000*3400*4200 3300*1600*4500
Work space 3200*2250*2900 2600*1065*2500
Electricity consumption Electrical heating 52.5~67.5kw 67.5kw
Steam heating 7.5~11kw 7.5kw
Gas heating 8.0~11.5kw --
