diesel generator set - 24kw Specificaton & Trade Terms
Model | 24kw |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|

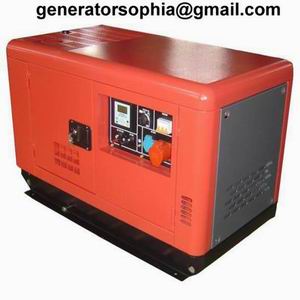

24KW Diesel Genertor Set
Genset Model ADS-24TZ3
Genset Output Power 24KW
Rated Voltage 230/400V
Frequency 50Hz
Power Factor(cos) 0.8(lagging)
Dimension (L×W×H) (mm) 2150×1050×1370
Net weight (kg) 800
Diesel Engine
Brand Foton
Model 4JB1T
Engine Structure Water-cooling , in line, vertical, 4-stroke, direction injection
Rotating Speed 1500r/min
Engine Cooling Method Radiator for ambient temp 40OC, belt driven cooling fan with cover
Constant power (g/kw.h) 28
Standby power (g/kw.h) 32
Aspiration Turbocharged
Bore×stroke(mm) 93×102
Displacement(L) 2.771
Piston speed(m/s) 5.1m/s
Compression ratio 18.2:1
Speed stability bandwidth ≤±0.8%
Steady governing rate ≤5%
Noise 90.6dB(A )At full load, 1m distance
Exhaust temperature 500℃
Exhaust back pressure 15KPa
Lub.temperature/capacity 120℃/5.5L
BMEP: Kpa (prime power) 895
Heat rejection to cooling 26.8 kw/min
Cooling system volume 4.5L(except water tank)
Cooling air flow 96m³/min
Alternator
Brand Rare earth permanent magnet alterantor
Model 24KW
Excite Type Brushless ,Self-exciting
Connecting Type 3 Phase and 4 Wires
Speed, frequency 4 poles, 1500rpm, 50HZ
Insulation degree H degree
Enclosure degree IP23
