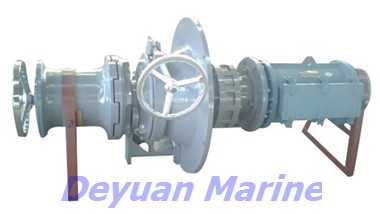

electric mooring rope capstan
Specifications
- Origin
- jiangsu
- Price Term
- EX-Work
- Payment Term
- T/T
Quick answer
electric mooring rope capstan is a Industrial Power Supplies product. Key specs — Origin: jiangsu; Price Term: EX-Work; Payment Term: T/T.
Product Description
We, ,can provide different types of electric warping hawser capstan and electric or hydraulic mooring capstan.Pls feel free to contact us for more details.
Size Mooring load
(KN) Moorin speed
(mm) Wire rope dia.
(mm) Motor power
(KW)
electric hydraulic
5KN 5 ≥18 Φ11 3/1.2 5.5
10KN 10 ≥18 Φ11 4.3/1.7 7.5
15KN 15 ≥18 Φ13 8.5/3.5 11
20KN 20 ≥18 Φ15 11/11/7.5 1.5
30KN 30 ≥18 Φ17.5 16/16/11 18.5
50KN 50 ≥18 Φ20.5 16 30
70KN 70 ≥15 Φ26 22 45
100KN 100 ≥15 Φ28 45/45/30 55
120KN 120 ≥15 Φ32.5 60/60/45 75
150KN 150 ≥15 Φ36.5 60/60/45 90
200KN 200 ≥15 Φ40 75/75/36 110
250KN 250 ≥12 Φ46 75/75/36 110
