fire fighting pump - XBD300-550 Specificaton & Trade Terms
Model | XBD300-550 |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|

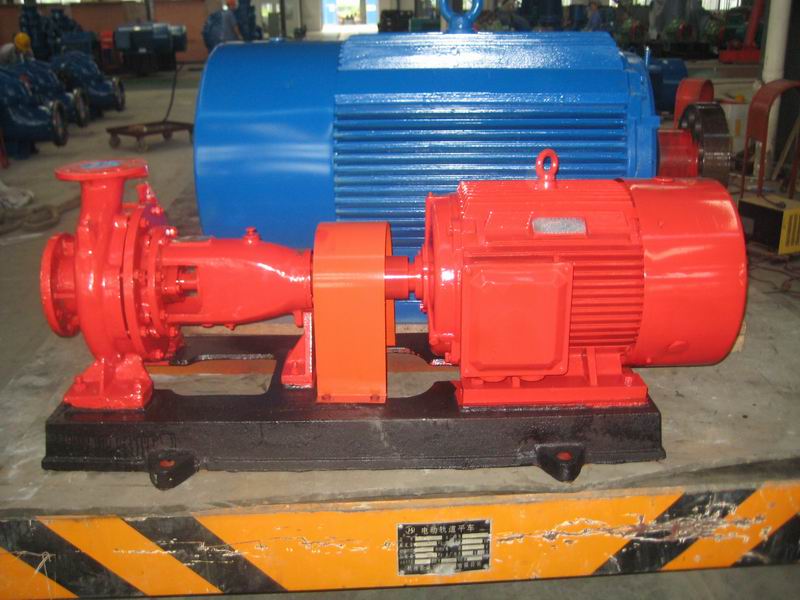

Product name : fire fighting pump&pump set
Item :XBD-I, XB-L,XBD-S typs, diesel engine pump set
Features :
XBD series fire fighting pumps, including multistage pump, horizontal end suction pump, horizontal split casing pumps , vertical inline pumps designed and manufactured in accordance with International Standard, can be motor powered and diesel powered, these pumps are ideal for fire fighting applications in harbors and wharfs, airports ), as well as ocean ships and industrial and civil high buildings.
Customer's requirements shall be tailored for higher capacities and pressure.
Data sheet :
Flow: up to 12300m3/h
Head: up to 200m
Speed: 1480r/min, 2950r/min (50HZ) 1750r/min, 3540r/min(60HZ)
Temperature: 105℃max
Working pressure:2.5MPa
Application:
---Industrial and municipal water supply
---Chilled and condenser water circulating systems
---Water treatment plants
---Fire fighting
---Irrigation and sprinkler pumping stations
