glass ampoule
Specifications
- Brand
- C-FLYING
- Origin
- shandong,china
- MOQ
- 100000
- Packaging
- in cartons
- Price Term
- FOB
- Payment Term
- L/C
- Supply Ability
- 10000000000pieces
- Delivery Time
- as customers'order
- Loading Ports
- Qingdao
glass ampoule is a Packaging Raw Materials product. Key specs — Brand: C-FLYING; Origin: shandong,china; MOQ: 100000; Packaging: in cartons.
Product Description

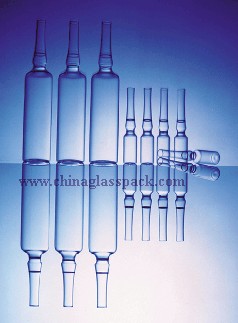

Glass Ampoule
** Made from COE 5.0 and COE 7.0 pharmaceutical glass tube
** We can produce clear and amber color
** Sizes can be produced by customers' request
Specification (ml) Outer diameter Body Constriction Bulb Stem O.D.OF color point Basic size Deviation limit Basic size Deviation limit Basic size Deviation limit Basic size Deviation limit 1 10.0 ±0.26 6.3 ±0.8 7.8 ±1.0 5.0 ±0.6 2.0±0.5 2 11.5 7.0 8.5 5.5 5 16.0 ±0.30 8.2 ±1.0 10.0 6.0 10 18.4 ±0.35 8.8 ±1.2 11.0 6.8 ±0.8 20 22.0 10.5 ±1.2 13.0 ±1.2 7.3 ±1.0
Height Thickness Volume Toral height Height up to Constricion Height from to gauging point Body height Height from bottom to top of the color point Stem Base Out of round Incline bottom Basic size Deviation limit Basic size Deviation limit Basic size Min Max Min Min Max Max 60.0 ±1.0 25.0 ±1.0 57.0 21.0 31.5 0.2 0.2 1.0 1.0 1.5 70.0 36.5 67.0 32.0 43.0 2.9 87.0 43.0 84.0 38.5 50.5 0.3 1.7 1.3 6.8 102.0 58.5 ±1.2 99.0 53.5 66.5 0.25 12.3 126.0 ±1.3 76.5 ±1.5 123.0 68.0 85.0 0.3 0.35 2.4 23.5
