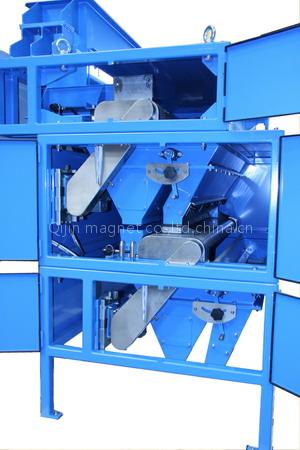

high indensity magnetic roll separator

Material is fed from the hopper at a controlled rate on the conveyor. As the belt travels around the roll, magnetic particles are influenced by competing centrifugal and magnetic forces. They are thrown from the belt, at a position on the roll where the centrifugal force overcomes the magnetic forces.

Non-magnetic particles are thrown from the belt on their normal trajectory. The particles are diverted by the splitter onto the chutes or outlets. The chutes can be arranged for 'non-magnetics' or 'magnetics' retreatment.
