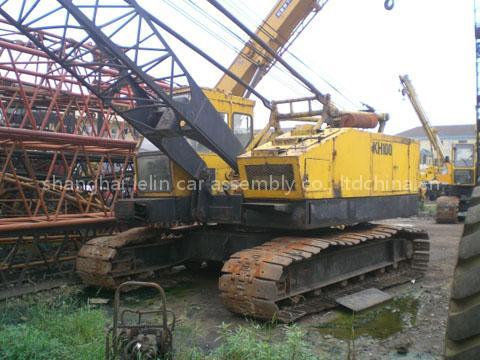

Hitachi KH 100 crawler crane

Year: 1994

Working hours: 8974

Enigne model: HINO H06C-T

Rated output: 110kw/2000rpm

Max. torque: 530N.m/1800rpm

Max. rated load: 30,000kg

Basic boom length: 10m

Max. boom length: 34m

Operating weight: 33,100kg

Ground pressure: 7.82psi

Overall width:3,300mm

Overall height: 4,715mm

Max. hooks capacity: 30,000kg

Hooks self weight: 360kg

Mian hoist drum(rope dia/width): 22mm/267mm

Max. rope capacity: 178mm

Max. starting line pull: 137kN

Max. running line pull: 143kN

Fuel tank capacity: 250L

Hydraulic tank : 205L

Engine coolant: 26L

Original: Japan

All good working condition

Location: Shanghai,China
