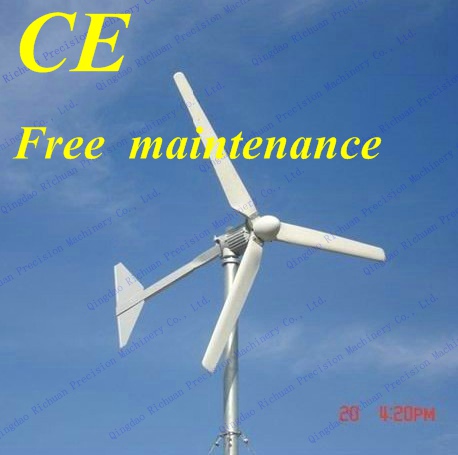

horizontal axis wind turbine generator - RCHA-300W

1.Low speed permanent magnet generator

2.Low starting torque, High generating efficiency

3.Glassfibre high efficiency blades

4.Neodymium magnets and bearing with high performance

5.Yaw motor system

6.Designed for minimal maintenance and easy install

7.Aerodynamic brake & manul brake

8.The span life of our products is 20~25 years.

High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America ,South America and Middle East.

Technical Parameter

Rated power
300W

Max power
450W

Output voltage
DC24V/AC220

Rated wind speed
6m/s

Rotor diameter
2.0m

Blade material
FRP

Start-up wind speed
3m/s

Work wind speed
3-25m/s

Rotation speed
400r/min

Number of blades
3

Turbine weight
30kg

Tower height
6m

Tower type
Steel (Q235B)

Suggested battery type
12V100AH 2pcs

Service life
20-25 years


Pure sine wave inverter

1. Pure sine wave output can drive any household appliances.

2. Use integrated circuit, less wire connection.

3. Adopting micro-processor technology, improving system integration.

Micro-computer intelligence controller

1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation .

2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.

3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current.

Characteristics:

Wind turbine has small size, and simple design. It fully uses lift and drag force, easily products rated power at low wind speed. 3 Phase Permanent Magnet AC Generator, direct driven, no gearbox, and not need windward.

Note:



1. Tower type and tower height can be changed as per your request.



2. Working voltage can be special requested.



3. For the details, please feel free to contact us.
