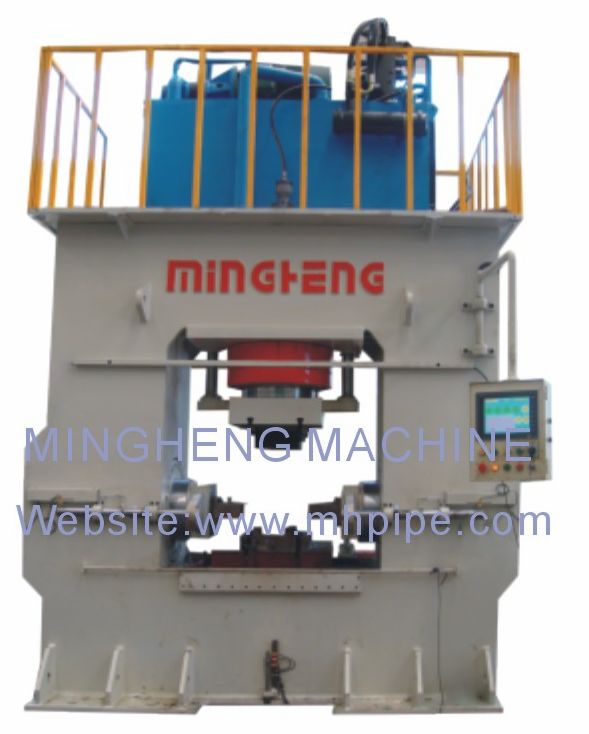

hydraulic tee cold forming machine - YSLT200A Specificaton & Trade Terms
| Model | YSLT200A |
|---|
| Place Of Origin | china |
|---|
| Packaging | in container |
|---|
| Brand | MINGHENG |
|---|
| Certifications | CE, ISO |
|---|
| Price Term | FOB, CIF,etc |
|---|
| Payment Term | T/T, L/C |
|---|
| Supply Ability | 35 sets/year |
|---|
| Minimum Order | 1set |
|---|
| Loading Ports | shanghai |
|---|
| Delivery Time | 90-120 days |
|---|
These Tee Cold Forming Machines are designed and constructed for manufacturing the Equal Tees or Reducing Tees ranging from 1/2" to 16" of stainless steel, carbon steel, alloy steel, etc. The production standard will be ASME B16.9, DIN, SMS, 3A, customized drawings is preferable.
Main Features of Tee Cold Forming Machine :
1.CE Certificate Approval
2.High strength steel metal via gas shielded welding framed machine
3.Production seamlessEqual or Reducing Teessize ranging from 1/2"to 16" with thickness up to Sch80s, With production standard according to ASME, ASTM, SMS, DIN, 3A, SMS or Customised is preferable
4.Processing materials of stainless steel, carbon steel, alloy steel, duplex steel are available
5.Tees will be formed in one bulging or hydro-forming process without any calibration
6.Energy saving, high working efficiency, less labor cost, batch production
7.Processing materials of stainless steel, carbon steel, alloy steel, duplex steel, aluminum, copper, Monel, Titanium alloy, Hastelloy are available
8.OEM is available
The processing size range of this model YSLT200A can be 3''-8'' of processing thickness is Sch10s--Sch100
