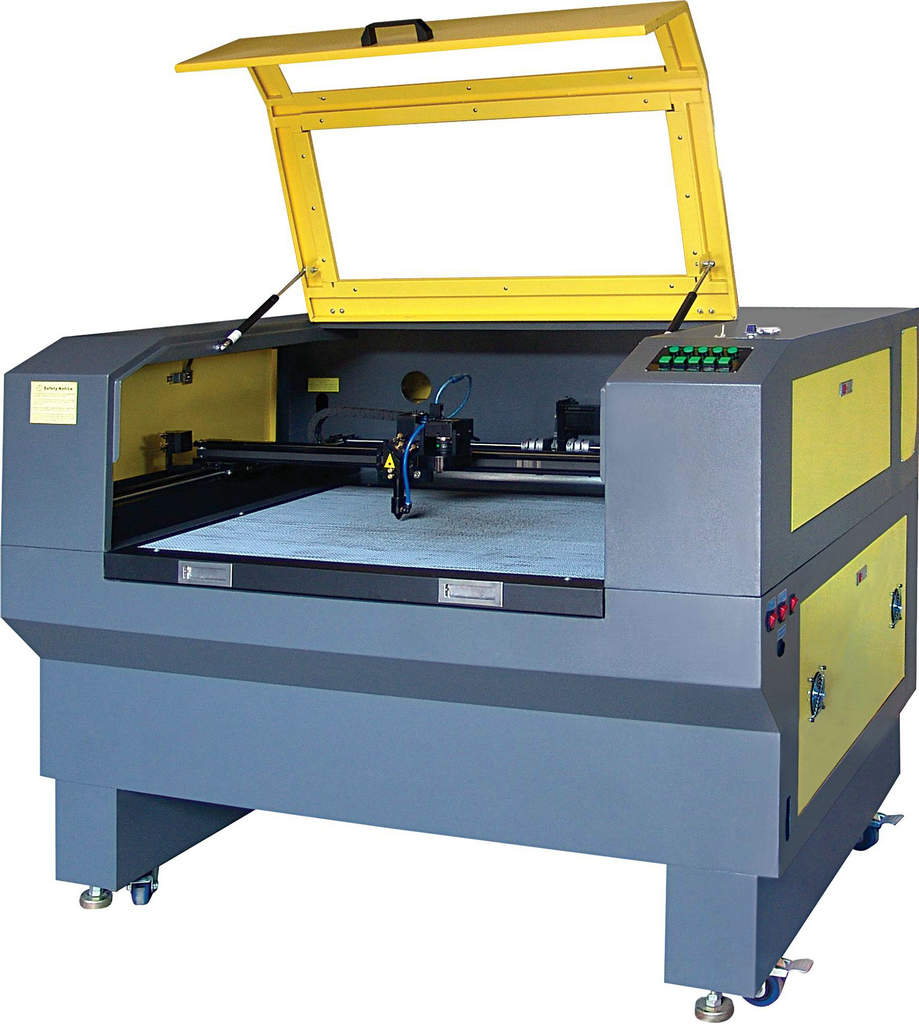

laser cutting machine KT960CCD - KT960CCD

KT 960CCD Laser Cutting Machine
Product description:
1.This model will be supplied with a computer.
2. It adopts CCD camera with 3,200,000 pels and super-recognition s oftware, ensuring the accuracy of cutting trademarks with whole area, without remaining anyone.
3. It can scan the labels and trademarks in size of 150×150mm in a whole piece. And the biggest size of design it can cut at one time is up to 750×500mm.
4. In the combinative work of pick up positioning visual system and computer software, this model can carry out overall and automatic trace compensation to the fine stretch and distortion of cloth.
5. It improves productivity greatly and it's convenient to use because of providing automatic loading and unloading system for roll and long mark spinning products.
6. The adoption of pick-up positioning system indicates that laser technology and automatic as well as man-made visual intellectual technology combined harmony. There is no question that it can be a good help for getting continuous and positive productive, and improve productivity. Applicable industries: Applicable for computerized embroidery label, irregular label, embroidery craftwork, print fabric industries for nonmetal materials artwork/patterns cutting.
Applicable materials:
Fabric, leather, PU, acrylic, plastic and other nonmetal materials. Technical parameters:

Model No. KT 960CCD
Laser tube type Sealed CO2 laser tube
Laser power 60W(80W Optional)
Cutting area 900 x 600mm
Max. cutting speed 0 – 38,000mm/min
Resolution Ratio 0.0064mm
Location precision < 0.01/mm
Working voltage AC 110 – 220V±10%, 50 – 60Hz
Gross power < 1,000W
Resolution power 0.0064mm
Driving system Stepper
Cooling mode Water-cooling and protection system
Graphic format support BMP,PLT, DST, DXF, and AI
Auxiliary devices Exhaust fan and exhaust pipes
Control software DSP control system
Packing size 1,460 x1,120 x1,430mm
Packing weight 300KG
