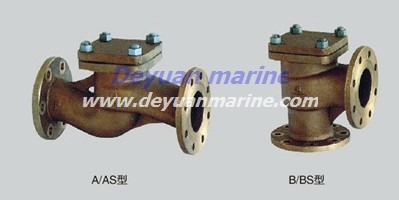

marine flanged bronze check valve - a4

marine flanged bronze check valve
China Deyuan Marine Fitting Co.,ltd are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with GB standard,JIS standard,DIN standard,API、ANSI,BS standard etc.Pls contact us for more details
Nominal pressure(Mpa) Nomiinal Diameter(mm) Applicable medium
0.6 15~125 Sea water,fresh water,lubricanting oil,fuel oil,t≤250℃ steam
1.0 65~125
1.6 65~125
2.5 15~100

PN(Mpa) DN(mm) Structure dimension Lift range(m) Weight(kg)
L H≈ H1 A type B type
1.0 65 290 115 123 94 115 19 12.2 11.3
80 310 125 139 104 125 23 16.4 14.3
100 350 150 160 117 135 28 24.6 22.7
125 400 175 185 129 155 35 37.0 30.4
1.6 125 400 175 197 143 155 35 45.8 40.0
2.5 20 150 75 79 66 75 6 3.6 3.5
25 160 80 80 67 80 7 4.3 4.1
32 180 85 85 68 85 9 5.0 4.8
40 200 90 88 76 90 12 6.3 6.0
50 230 95 109 85 95 15 8.6 8.2
65 290 115 123 94 115 19 13.5 11.5
80 310 125 150 110 125 23 19.8 17.3
100 350 150 155 118 135 28 30.5 25.7

&&&&&&:
