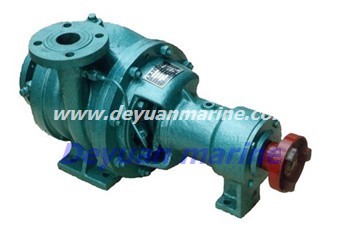

marine horizontal water sealing pump
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.
The CWFseries marine horizontal water sealing pump is suitable to the protection pump on dredger where it is used to seal the water.It is also suitable to the bilge pump,cooling pump and fire pump on boats.It may be used to deliver the sea water,fresh water or other non-corrosive liquid medium lower than 80℃.
The pump rotates anticlockwise viewed from motor.
Type (50HZ,3phase,380v) main technical parameter Motor power(kw)
Capacity
(m3/h) Head
(m) Speed
(r/min) NPSHR
(m) Shaft power(kw)
50CWF-70-J 15 70 2900 3.2 6.4 7.5
65CWF-40-J 40 40 2950 3.5 6.9 11
65CWF-80-2D 25 80 2950 3.2 11.5 15
65CWF-100-2D 25 100 2950 3.2 15.8 18.5
65CWF-60-J 40 60 2950 3.5 11.73 15
65CWF-70-2D 40 70 2950 3.4 23.2 15
65CWF-105-2D 40 100 2950 3.5 23.2 30
65CWF-120-2D 40 120 2950 3.5 29.5 37
80CWF-50-J 50 50 2950 3.5 10.1 15
80CWF-65-J 50 65 2950 3.5 14.1 18.5
80CWF-70-2D 50 70 2950 3.5 15.9 18.5
80CWF-80-2D 50 80 2950 3.5 25.3 30
More types can be offered,pls contact us for more details.

&&&&&&:
