marine vertical deep-well oil pump - e5

marine vertical deep-well oil pump
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

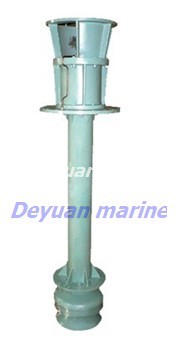

The CJY series marine vertical deep-well oil pump is used to pumping lubricating oil and it is driven by motor.Because of the long shaft of the pump,it is able to used for the circulation between the up cabin and the down cabin,it can be replaced the bulkhead drive device,which used with horizontal pump ago.The pump features in small occupation of floor,high efficiency,easy operation and easy maintenance.The pump is used to pumping oil in oil tanker primarily.
The pump rotates clockwise viewed from the top of motor.
Type Capacity(m3/h) Head (m) Speed(r/min） Motor power(kw)
CJY200-7 158 35 1480 45
CJY200-5.5 175 50 1480 75
(60HZ,3Phase,440v) performance parameter
CJY200-7 190 50 1780 75
CJY200-5.5 210 72 1780 132
Pls contact us for more details.

&&&&&&:
